IMCO Carbide Tool
340726
IPT13
Specifications
| Helix Angle | 30 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Inch) | 3/4 |
| Corner Radius (Inch) | 0.03 |
| Overall Length (Inch) | 5 |
| Coating/Finish | AlCrNX |
| Number Of Flutes | 13 |
| Unit Of Measure | Fractional |
| Cutting Direction | Right Hand |

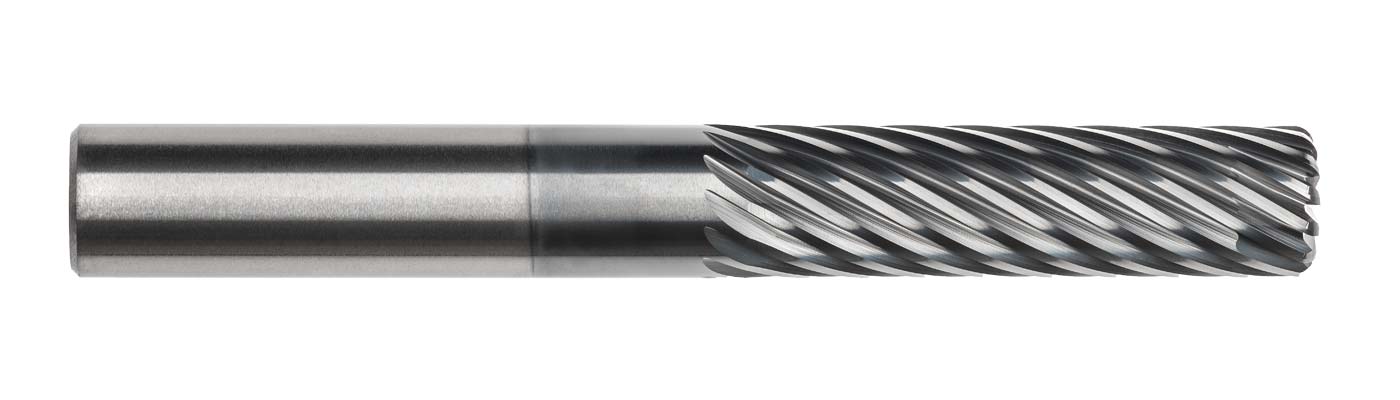

| Short Description | IPT13 3/4 13F .030R 3.5xD Pow-R-Path Mill |
| Diameter | 3/4 in |
| Shank Size | 3/4 Inch |
| Shank Type | Plain |
| Series | POW-R-PATH |
| Long Description | IPT13 3/4 13F .030R 3.5xD Pow-R-Path Mill<br>3/4 x 3/4 x 2-5/8 x 5 AlCrNX |
| Flute Length (Fractional) | 2-5/8 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 2-5/8 in |
| Depth-to-Diameter Ratio | 3.5xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter | 3/4 in |
| Trade Name | IPT13 |
| End Style | 0.030 in CR |
| Tool Material | Solid Carbide |
| Radius Size | 0.03 |
| OAL | 5 in |
