IMCO Carbide Tool
340742
IPT13
Specifications
| Helix Angle | 30 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Inch) | 1-1/4 |
| Corner Radius (Inch) | 0.06 |
| Overall Length (Inch) | 5-1/2 |
| Coating/Finish | AlCrNX |
| Number Of Flutes | 13 |
| Unit Of Measure | Fractional |
| Cutting Direction | Right Hand |

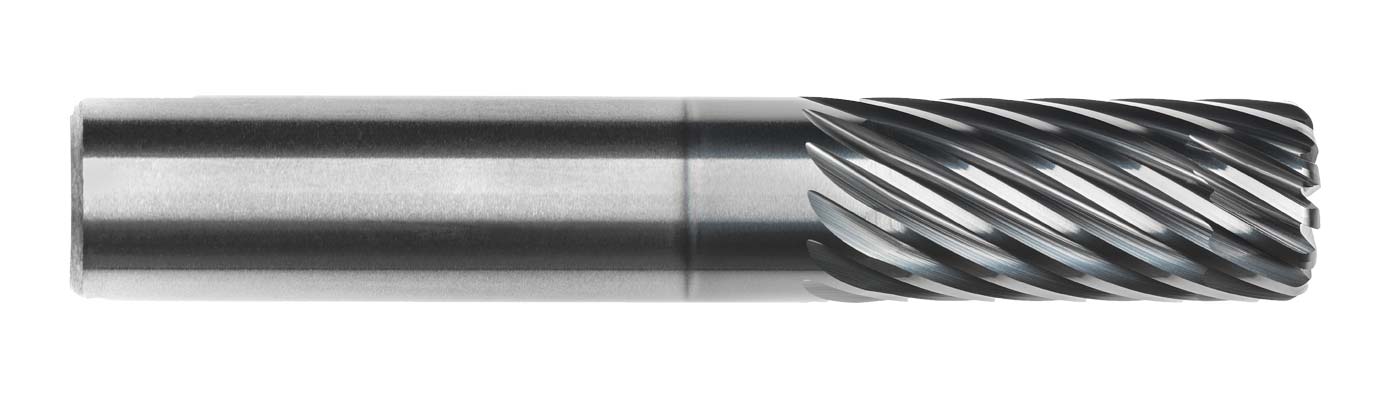

| Short Description | IPT13 1-1/4 13F .060R 2xD Pow-R-Path Mill |
| Diameter | 1-1/4 in |
| Shank Size | 1-1/4 Inch |
| Overall Length | 5-1/2 Inch |
| Shank Type | Plain |
| Series | POW-R-PATH |
| Long Description | IPT13 1-1/4 13F .060R 2xD Pow-R-Path Mill<br>1-1/4 x 1-1/4 x 2-1/2 x 5-1/2 AlCrNX |
| Flute Length (Fractional) | 2-1/2 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 2-1/2 in |
| Depth-to-Diameter Ratio | 2xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter | 1-1/4 in |
| Trade Name | IPT13 |
| End Style | 0.060 in CR |
| Tool Material | Solid Carbide |
| Radius Size | 0.06 |
| OAL | 5-1/2 in |
