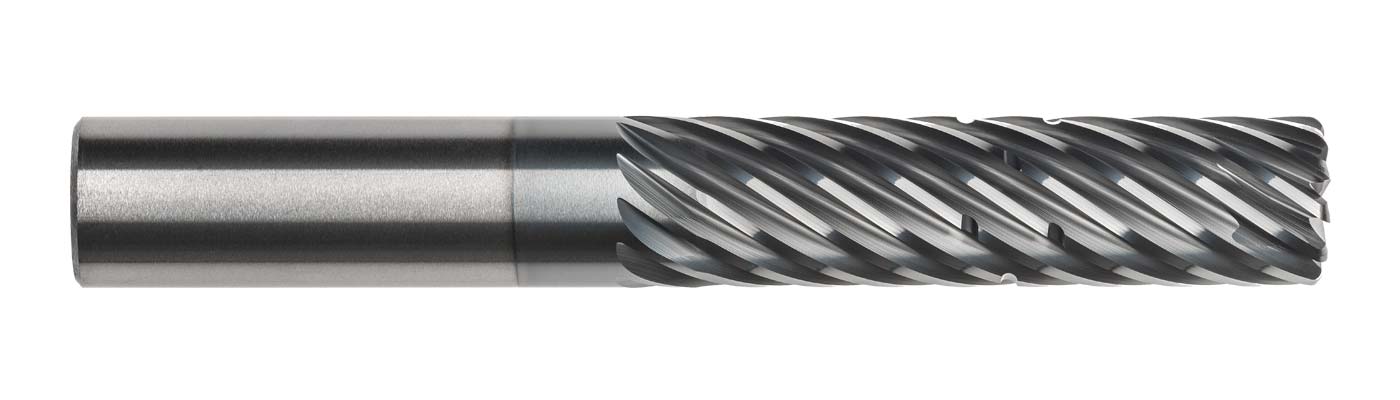

IMCO Carbide Tool
340899
IPC11
Specifications
| Helix Angle | 34 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Metric) | 20 |
| Overall Length (Metric) | 125 |
| Coating/Finish | AlCrNX |
| Corner Radius (Metric) | 1.5 |
| Number Of Flutes | 11 |
| Unit Of Measure | Metric |
| Cutting Direction | Right Hand |
| Short Description | IPC11 20,0 11F 1,5R 3xD Pow-R-Path Mill |
| Diameter | 20 mm |
| Shank Size | 20 mm |
| Overall Length | 125 mm |
| Shank Type | Plain |
| Series | POW-R-PATH |
| Long Description | IPC11 20,0 11F 1,5R 3xD Pow-R-Path Mill<br>20 x 20 x 60 x 125 AlCrNX |
| Flute Length (Metric) | 60 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 60 mm |
| Depth-to-Diameter Ratio | 3xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 20 mm |
| Trade Name | IPC11 |
| End Style | 1.500 mm CR |
| Tool Material | Solid Carbide |
| Radius Size | 1.5 mm |
| OAL | 125 mm |
