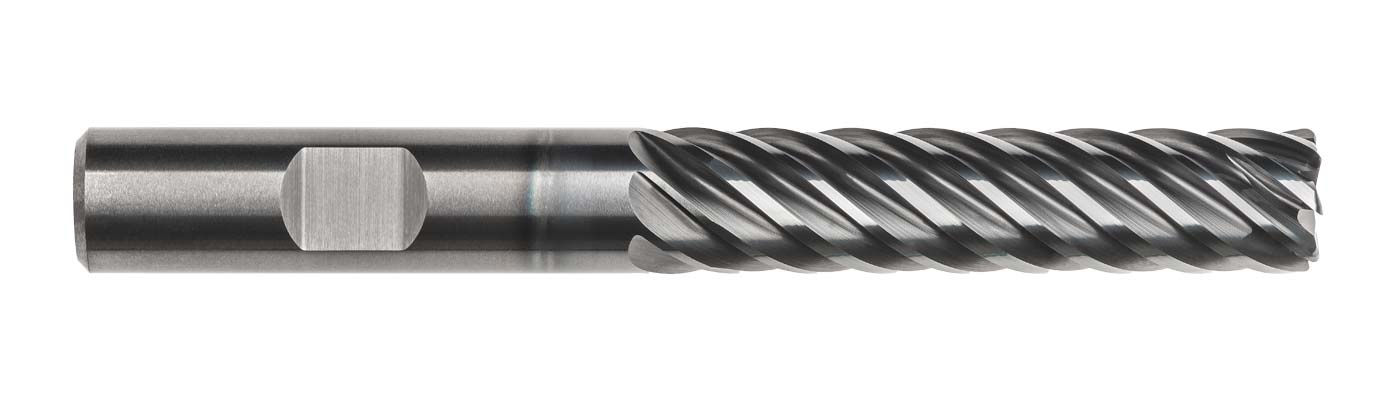

IMCO Carbide Tool
853455
IPT7
Specifications
| Helix Angle | 40 degrees |
|---|---|
| Material | Solid Carbide |
| Cutting Diameter (Metric) | 16 |
| Overall Length (Metric) | 125 |
| Coating/Finish | AlCrNX |
| Corner Radius (Metric) | 1.5 |
| Number Of Flutes | 7 |
| Unit Of Measure | Metric |
| Cutting Direction | Right Hand |
| Short Description | IPT7 16,0 7F 1,5R 4xD Pow-R-Path Mill |
| Diameter | 16 mm |
| Shank Size | 16 mm |
| Overall Length | 125 mm |
| Shank Type | Weldon |
| Series | POW-R-PATH |
| Long Description | IPT7 16,0 7F 1,5R 4xD Pow-R-Path Mill<br>16 x 16 x 64 x 125 WF AlCrNX |
| Flute Length (Metric) | 64 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand Spiral |
| Direction Of Hand | Right Hand |
| Flute Length | 64 mm |
| Depth-to-Diameter Ratio | 4xD |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 16 mm |
| Trade Name | IPT7 |
| End Style | 1.500 mm CR |
| Tool Material | Solid Carbide |
| Radius Size | 1.5 mm |
| OAL | 125 mm |
