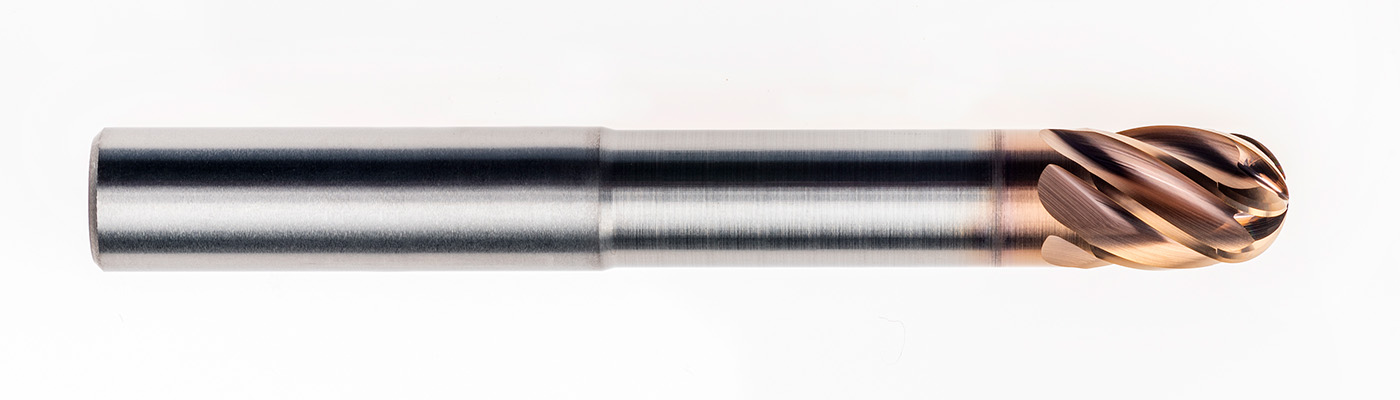

IMCO Carbide Tool
9174412
A106N
Specifications
| Coating/Finish | AlTiSN |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 4 |
| Cutting Direction | Right Hand |
| Shank Size (Inch) | 1/2 |
| Material | Solid Carbide |
| Number Of Flutes | 6 |
| Diameter (Inch) | 1/2 |
| Unit Of Measure | Fractional |
| Short Description | A106N 1/2 6F BN POW-R-ARC Mill |
| Flute Length (Fractional) | 5/8 |
| Flute Direction | Right Hand Spiral |
| Shank Diameter | 1/2 in |
| Long Description | A106N 1/2 6F BN POW-R-ARC Mill<br>1/2 x 1/2 x 5/8 x 4 LBS=2-1/4 IM01J |
| Series | POW-R-ARC |
| Flute Length | 5/8 Inch |
| Helix Angle | 35 degrees |
| Radius Size | BN |
| Material Grade | Micrograin |
| Diameter | 1/2 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Trade Name | A106N |
| End Style | Ball End |
| Tool Material | Solid Carbide |
| OAL | 4 in |
