IMCO Carbide Tool
9174432
A108
Specifications
| Coating/Finish | AlTiSN |
|---|---|
| Shank Type | Plain |
| Overall Length (Inch) | 3-1/2 |
| Cutting Direction | Right Hand |
| Shank Size (Inch) | 5/8 |
| Material | Solid Carbide |
| Number Of Flutes | 8 |
| Diameter (Inch) | 5/8 |
| Unit Of Measure | Fractional |

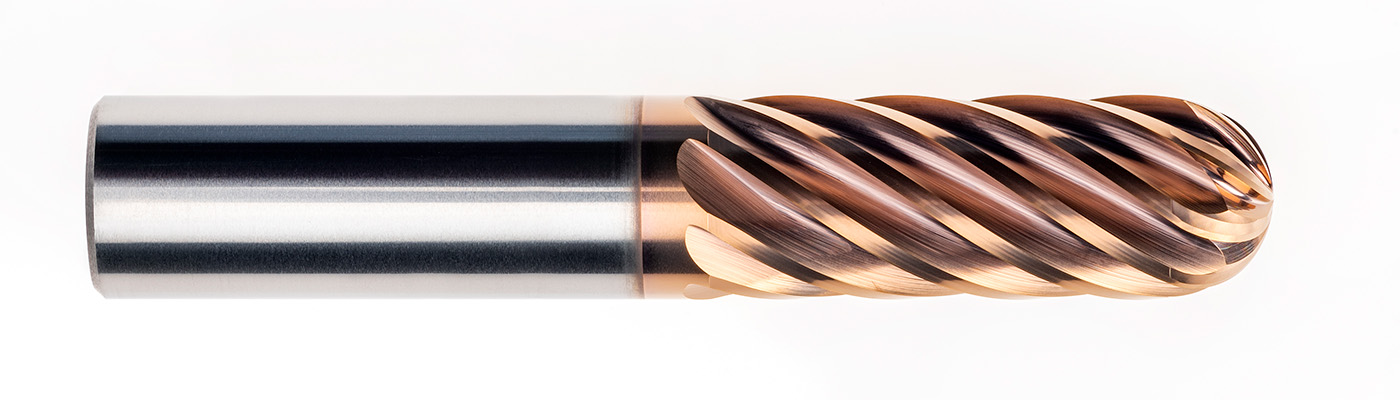

| Short Description | A108 5/8 8F BN POW-R-ARC Mill |
| Flute Length (Fractional) | 1-5/8 |
| Flute Direction | Right Hand Spiral |
| Shank Diameter | 5/8 in |
| Long Description | A108 5/8 8F BN POW-R-ARC Mill<br>5/8 x 5/8 x 1-5/8 x 3-1/2 IM01J |
| Series | POW-R-ARC |
| Flute Length | 1-5/8 Inch |
| Helix Angle | 35 degrees |
| Radius Size | BN |
| Material Grade | Micrograin |
| Diameter | 5/8 in |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Trade Name | A108 |
| End Style | Ball End |
| Tool Material | Solid Carbide |
| OAL | 3-1/2 in |
