IMCO Carbide Tool
9174838
A108N
Specifications
| Coating/Finish | AlTiSN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 10 |
| Overall Length (Metric) | 72 |
| Cutting Direction | Right Hand |
| Shank Size (Metric) | 10 |
| Material | Solid Carbide |
| Number Of Flutes | 8 |
| Unit Of Measure | Metric |

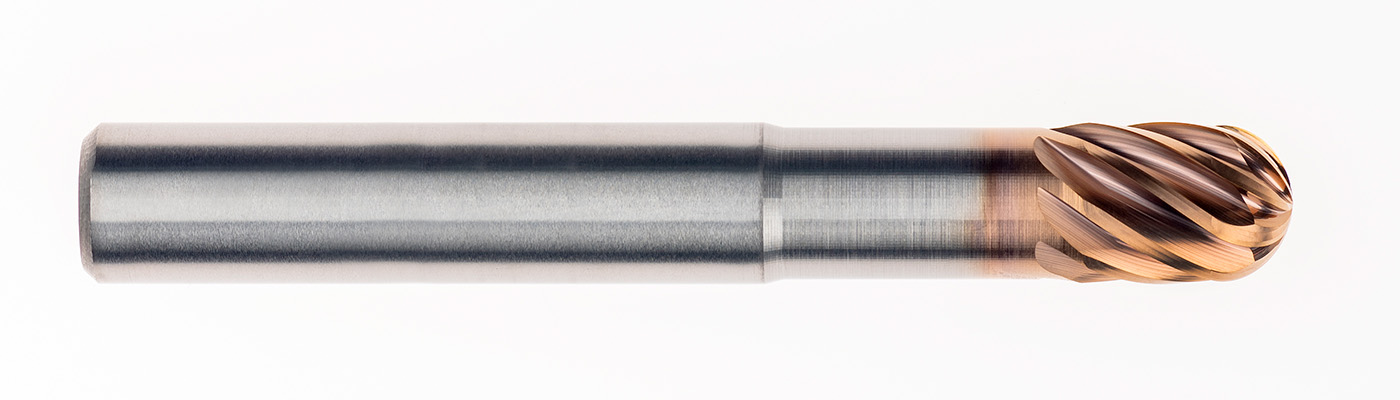

| Short Description | A108N 10,0 8F BN Pow-R-Arc Mill |
| Flute Length (Metric) | 12 |
| Flute Direction | Right Hand Spiral |
| Shank Diameter | 10 mm |
| Long Description | A108N 10,0 8F BN Pow-R-Arc Mill<br>10 x 10 x 12 x 72 LBS=30 IM01J |
| Series | POW-R-ARC |
| Flute Length | 12 mm |
| Helix Angle | 35 degrees |
| Radius Size | BN |
| Material Grade | Micrograin |
| Diameter | 10 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | A108N |
| End Style | Ball End |
| Tool Material | Solid Carbide |
| OAL | 72 mm |
