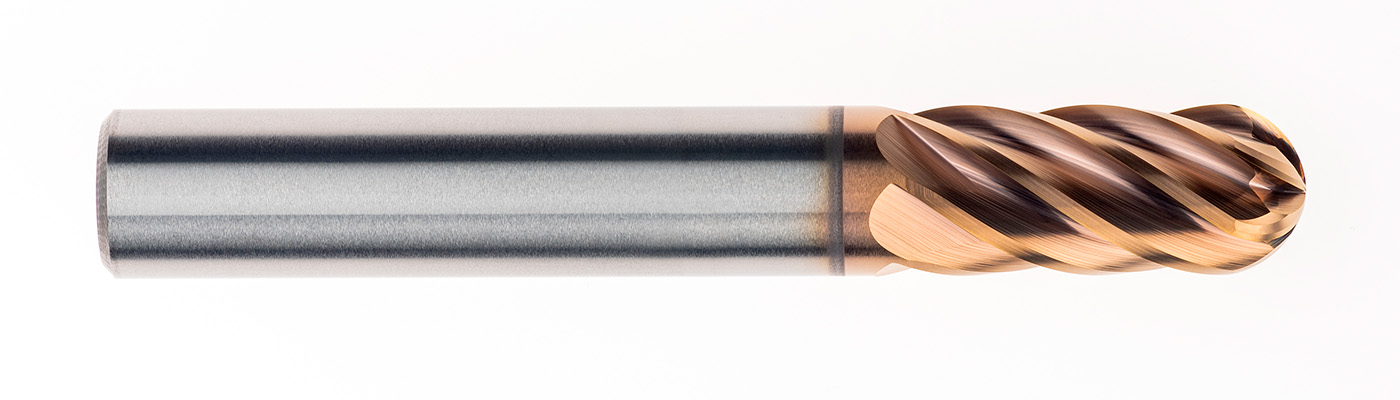

IMCO Carbide Tool
9174841
A106
Specifications
| Coating/Finish | AlTiSN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 12 |
| Overall Length (Metric) | 83 |
| Cutting Direction | Right Hand |
| Shank Size (Metric) | 12 |
| Material | Solid Carbide |
| Number Of Flutes | 6 |
| Unit Of Measure | Metric |
| Short Description | A106 12,0 6F BN POW-R-ARC Mill |
| Flute Length (Metric) | 26 |
| Flute Direction | Right Hand Spiral |
| Shank Diameter | 12 mm |
| Long Description | A106 12,0 6F BN POW-R-ARC Mill <br>12 x 12 x 26 x 83 IM01J |
| Series | POW-R-ARC |
| Flute Length | 26 mm |
| Helix Angle | 35 degrees |
| Radius Size | BN |
| Material Grade | Micrograin |
| Diameter | 12 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | A106 |
| End Style | Ball End |
| Tool Material | Solid Carbide |
| OAL | 83 mm |
