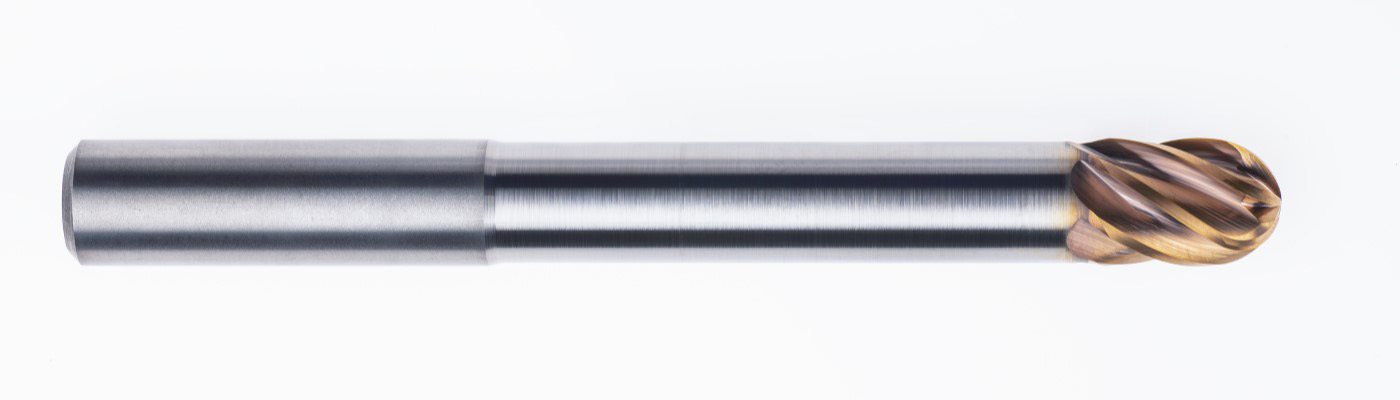

IMCO Carbide Tool
9174857
A106N
Specifications
| Coating/Finish | AlTiSN |
|---|---|
| Shank Type | Plain |
| Diameter (Metric) | 16 |
| Overall Length (Metric) | 150 |
| Cutting Direction | Right Hand |
| Shank Size (Metric) | 16 |
| Material | Solid Carbide |
| Number Of Flutes | 6 |
| Unit Of Measure | Metric |
| Short Description | A106N 16,0 6F BN POW-R-ARC Mill |
| Flute Length (Metric) | 20 |
| Flute Direction | Right Hand Spiral |
| Shank Diameter | 16 mm |
| Long Description | A106N 16,0 6F BN POW-R-ARC Mill<br>16 x 16 x 20 x 150 LBS=96 IM01J |
| Series | POW-R-ARC |
| Flute Length | 20 mm |
| Helix Angle | 35 degrees |
| Radius Size | BN |
| Material Grade | Micrograin |
| Diameter | 16 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Trade Name | A106N |
| End Style | Ball End |
| Tool Material | Solid Carbide |
| OAL | 150 mm |
