IngersollUsa
2900607
15M1P-12047S9R01
Specifications
| Cutting Diameter | 10.7442 |
|---|---|
| Shank Diameter | 31.75 |
| Overall Length | 203.2 |
| Cutting Edge Angle | 12 |

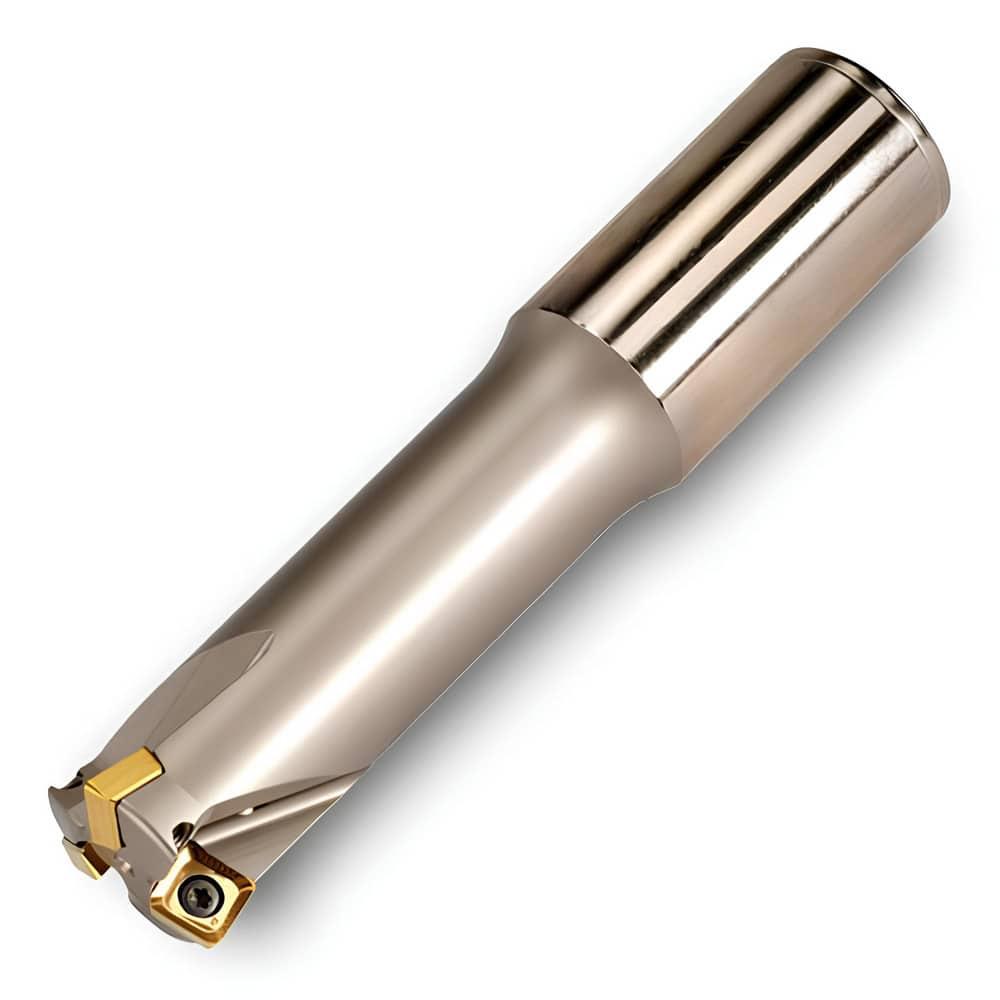

| FamilyName | 15M1P - Hi-Feed End Mill (Cyli |
| Coolant | 0 |
| Usable Length Max | 106.172 |
| Neck Diameter | 0 |
| Coolant-2 | Yes |
| Ramp Angle Maximum | 9.1 |
| Subapplication Name | Helical Interpolation |
| Depth of Cut Max | 1.981 |
| Program Radius Equivalent | 3.2004 |
| Application Name | Milling |
| Eff. Teeth | 2 |
| Protruding Length | 120.65 |
| Main Application | ML |
