IngersollUsa
3031022
12A5M-07022S7R01
Specifications
| Shank Type | 0 |
|---|---|
| Coolant | 0 |
| Shank Diameter | 19.05 |
| Overall Length | 177.8 |
| Body Half Taper Angle | 0 |
| Cutting Diameter | 19.05 |
| Cutting Edge Angle | 0 |

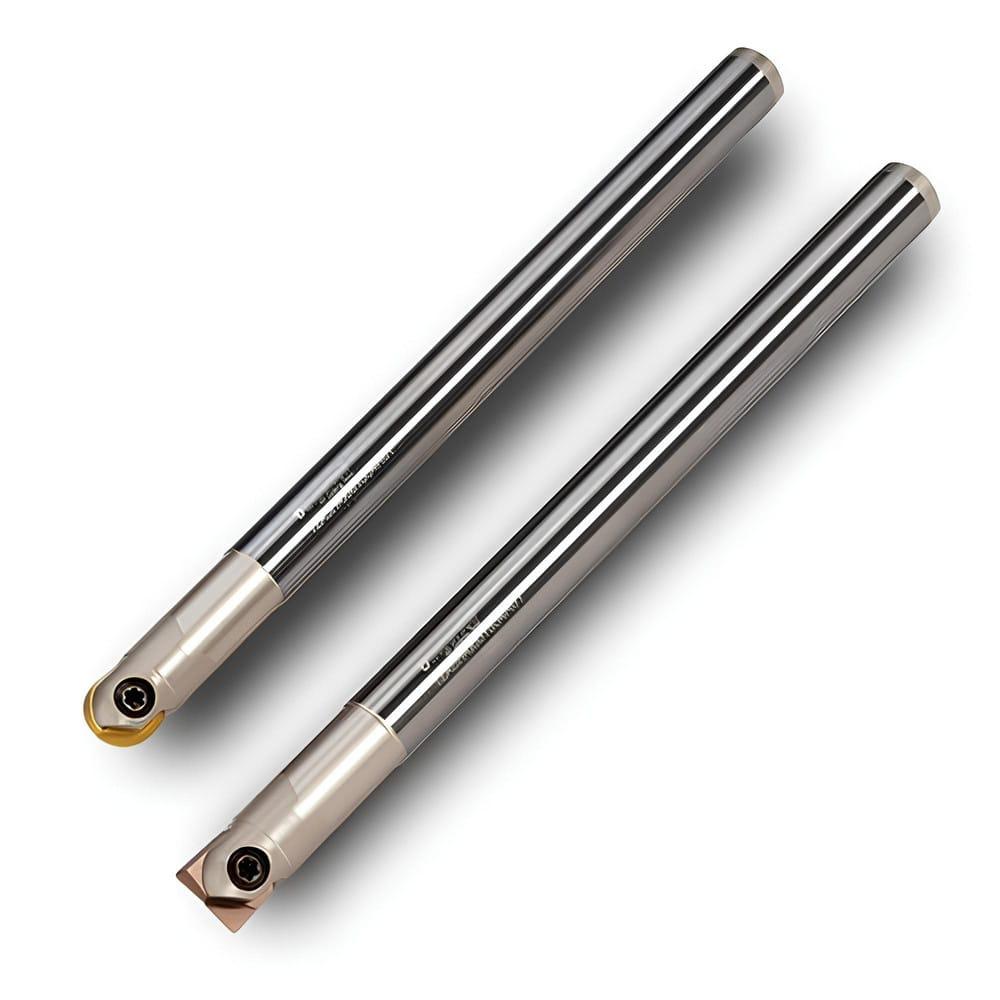

| FamilyName | 12A5 Ball Nose & Backdraft End |
| Usable Length Max | 57.15 |
| Neck Diameter | 18.542 |
| Flange Diameter | 0 |
| Coolant-2 | No |
| Subapplication Name | Helical Interpolation |
| Depth of Cut Max | 0 |
| Functional Length | 0 |
| Application Name | Milling |
| Eff. Teeth | 2 |
| Profile Radius | 9.525 |
| Protruding Length | 127 |
| Main Application | ML |
