IngersollUsa
5522892

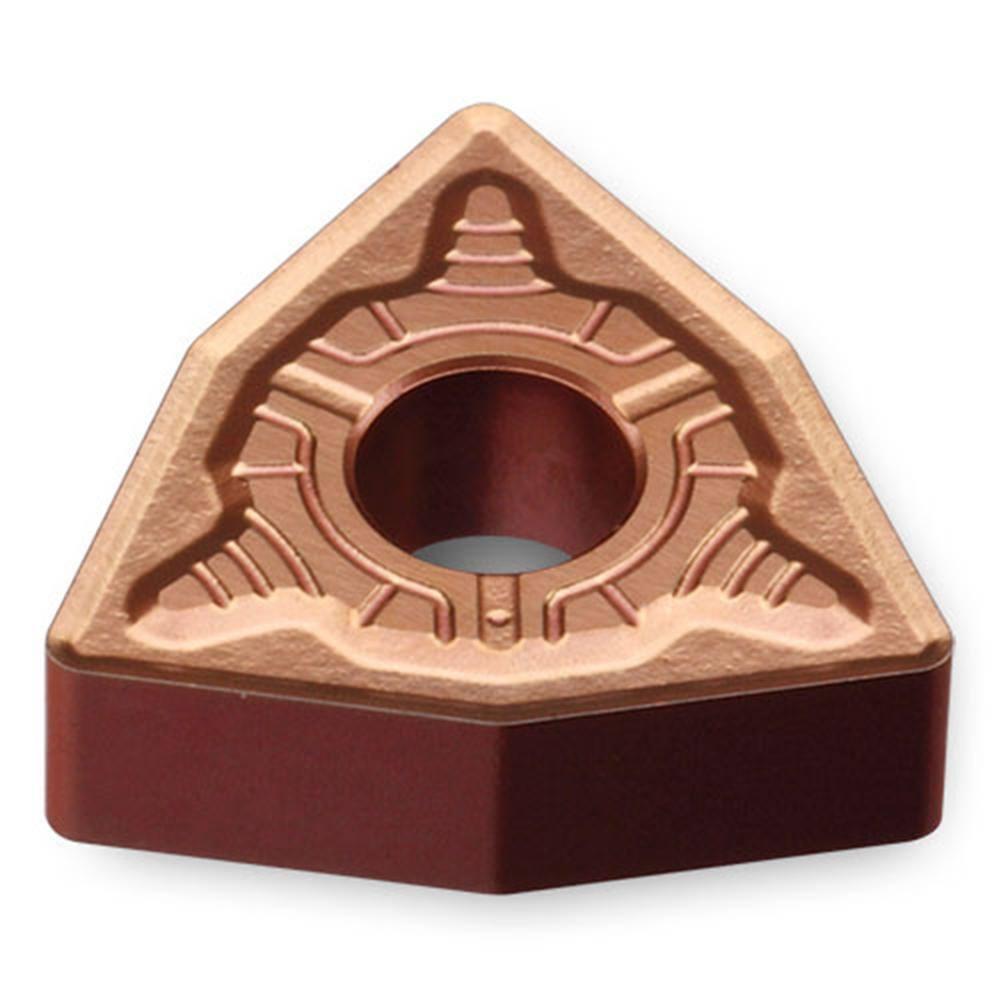

WNMG080408EM
Specifications
| Cutting Edge Length | 8.7122 |
|---|---|
| Inscribed Circle Diameter | 12.7 |
| Clearance Angle Major | 0 |
| Face Land Angle | 0 |
| Thickness | 4.7498 |
| Corner Radius | 0.7874 |
| Insert Hand | 0 |
| Cutting Feed Minimum | 0.127 |
| FamilyName | WNMG EM Chipbreaker |
| Insert Rake Angle | 0 |
| number of Indexes | 6 |
| Face Land Width | 0 |
| Subapplication Name | Threading (Ext.) Groove Turn T |
| Cutting Feed Maximum | 0.508 |
| Application Name | ISO-Turning |
| Insert Included Angle | 80 |
| Cutting Depth Maximum | 4.064 |
| Fixing Hole Diameter | 0 |
| Cutting Depth Minimum | 0.7874 |
| Main Application | IS |
