IngersollUsa
5868348

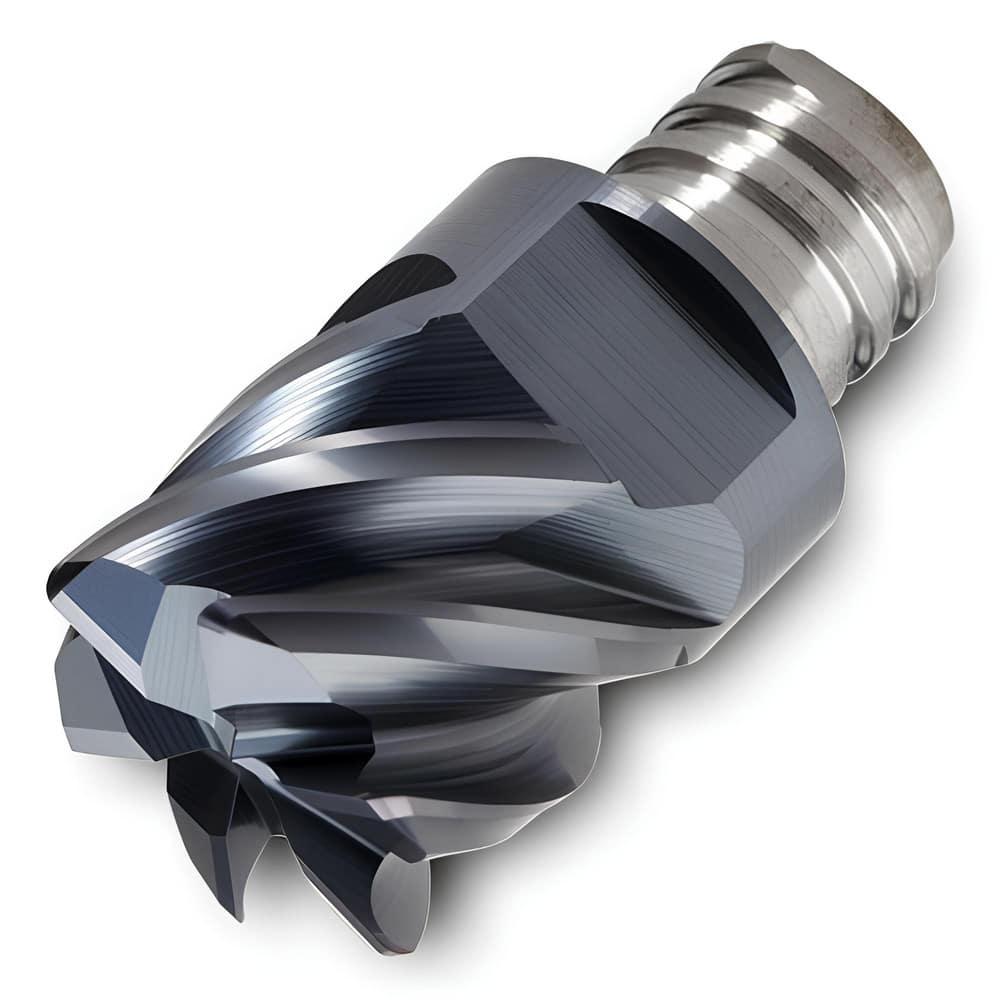

48D12009T8RD15
Specifications
| Shank Diameter | 0 |
|---|---|
| Torque | 130 |
| Shank Type | 0 |
| Cutting Edge Angle | 90 |
| Flute Helix Angle | 0 |
| FamilyName | 48_ & 49_ - 90° End Mill Tip ( |
| Coolant | 0 |
| Usable Length Max | 0 |
| Corner Radius/Chamfer | 0 |
| Coolant-2 | No |
| Wiper Length | 0 |
| Ramp Angle Maximum | 3 |
| Flute Helix Angle-2 | 45 |
| Subapplication Name | Helical Interpolation |
| Depth of Cut Max | 9 |
| Functional Length | 16.5 |
| Application Name | Milling |
| Cutting Diameter | 12 |
| Hub Diameter | 11.7 |
| Corner Radius/Chamfer-2 | 1.500 R |
| Body Half Taper Angle | 0 |
| Main Application | ML |
