IngersollUsa
5902120

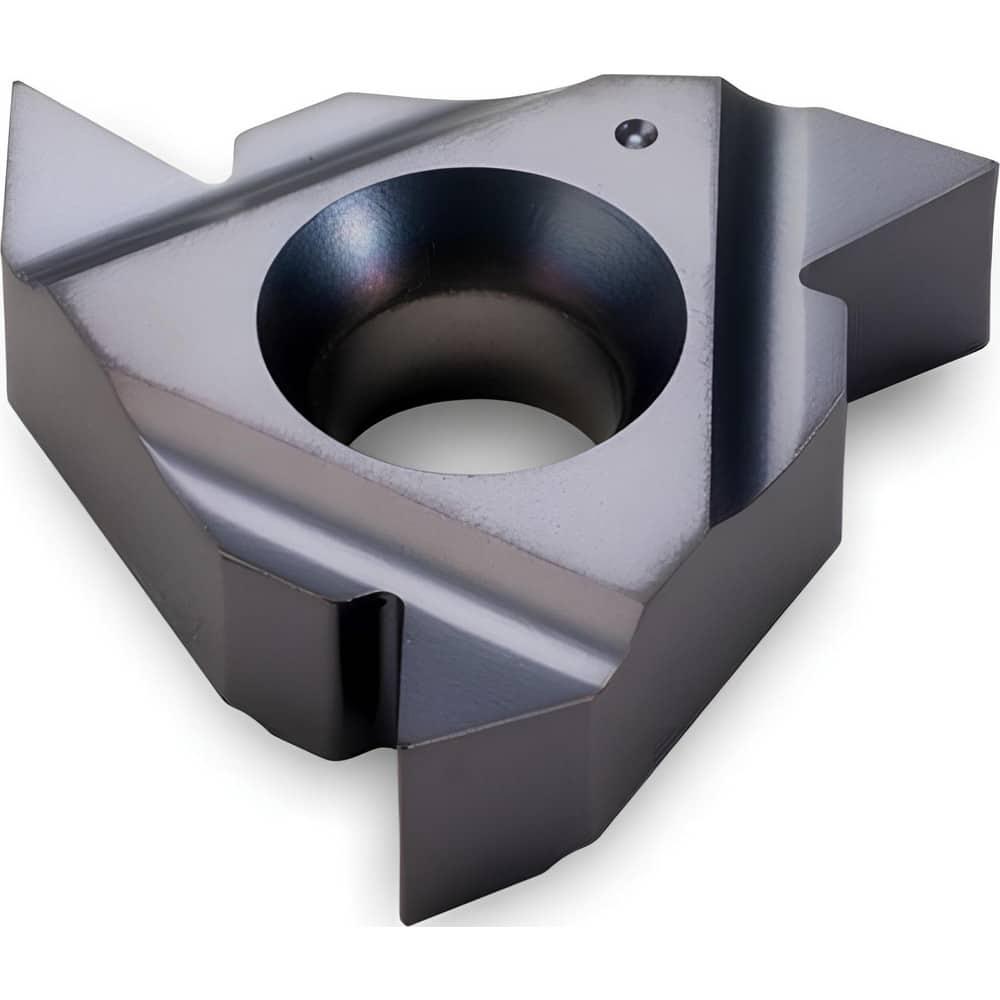

22ELN60
Specifications
| Thread Type | 0 |
|---|---|
| Insert Hand | 0 |
| Connection number | 0 |
| Tooth Count | 1 |
| Insert Length | 21.9964 |
| FamilyName | Partial Profile 60°, External, |
| Threads per Inch | 0 |
| Thread Pitch | 0 |
| Profile Distance Ey | 0.067 |
| Thread Tolerance Class | 0 |
| Inscribed Circle Diameter | 12.7 |
| Profile Distance Ex | 2.4892 |
| Subapplication Name | Int. Grooving |
| Application Name | ISO-Turning |
| Corner Radius | 0.3302 |
| Thread Profile Type | 0 |
| Main Application | IS |
