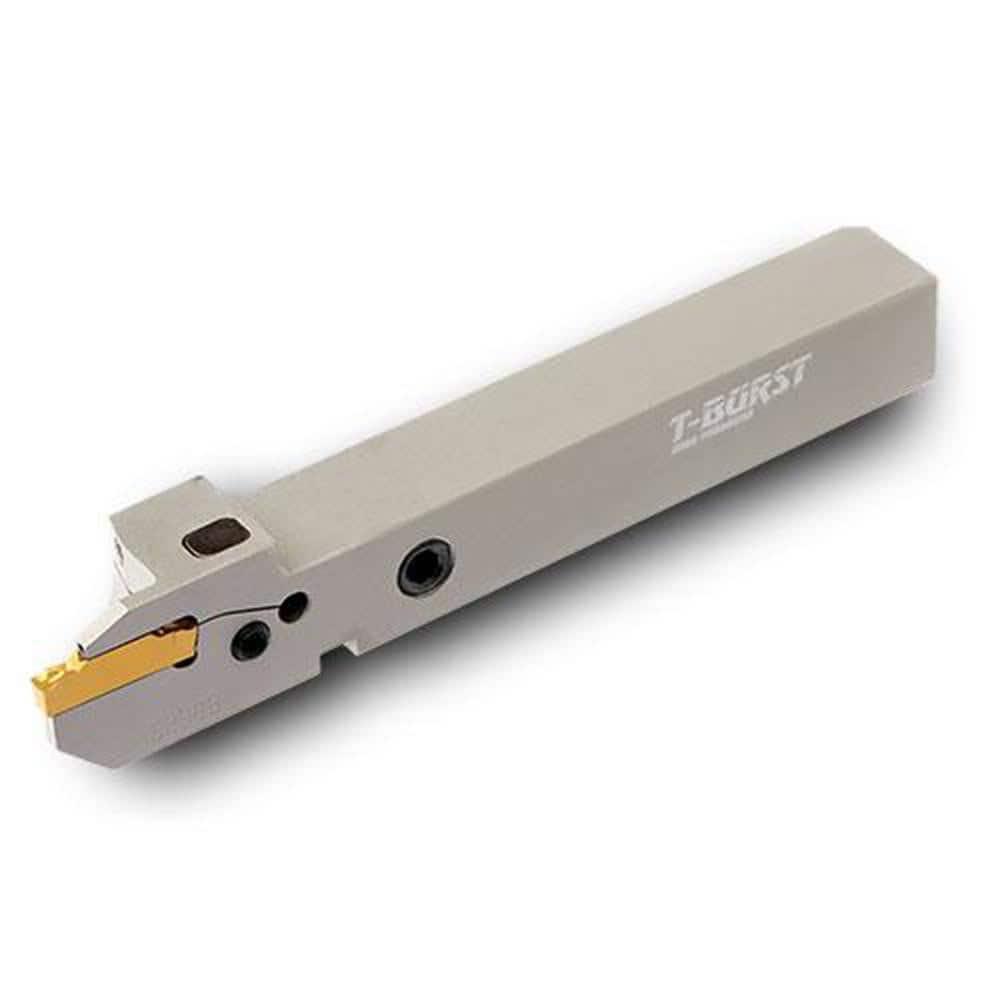

IngersollUsa
6138834
TTEL15.9-32-3SH-TB
Specifications
| Shank Height | 15.875 |
|---|---|
| Shank Width | 15.875 |
| Coolant Entry Thread Size | 0 |
| Overall Length | 0 |
| FamilyName | TTER/L-SH-TB |
| Head Length | 31.496 |
| Insert Seat Size | 0 |
| Functional Height | 15.875 |
| Head Bottom Offset Length | 0 |
| Subapplication Name | Ext. Profiling |
| Functional Length | 127 |
| Application Name | ISO-Turning |
| Overall Height | 21.4122 |
| Head Bottom Offset Height | 0 |
| Cutting Depth Maximum | 17.018 |
| Body Width | 2.3876 |
| Main Application | IS |
| Functional Width | 14.7066 |
