IngersollUsa
6400299

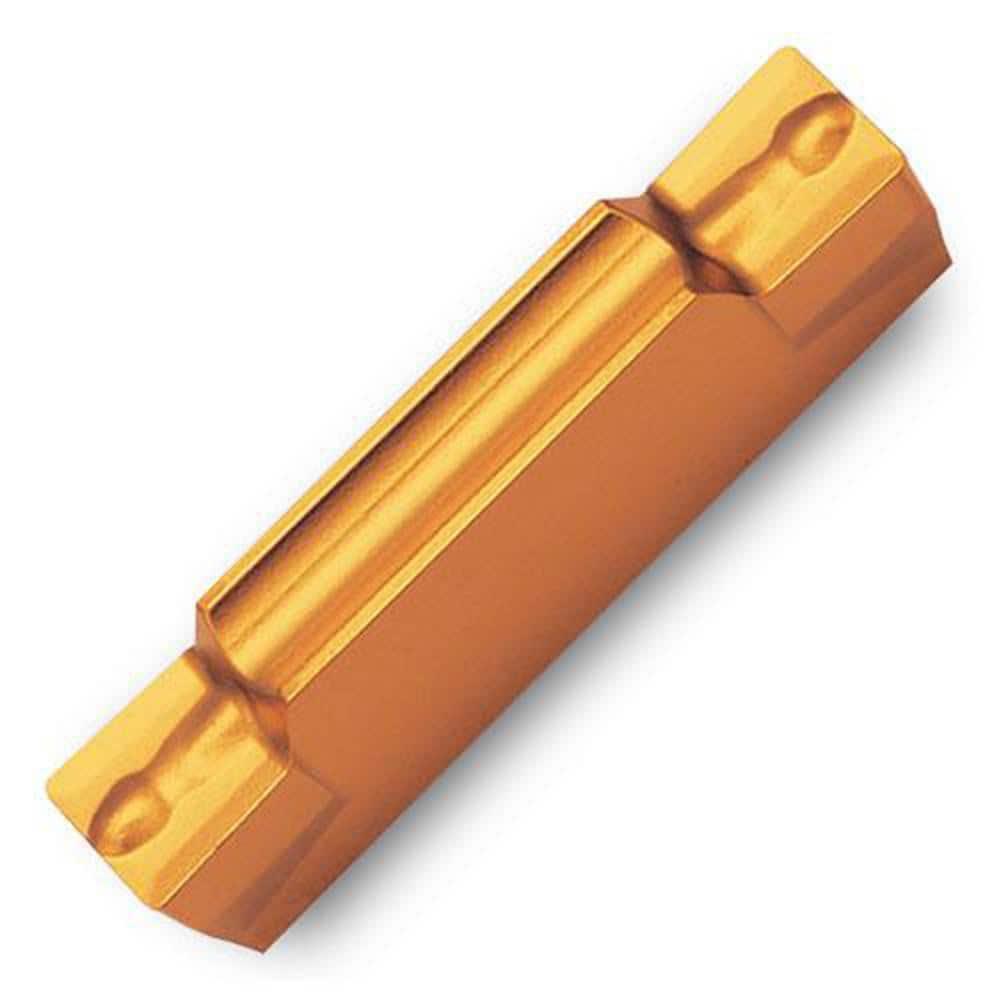

TDT3.15E-0.15
Specifications
| Insert Hand | 0 |
|---|---|
| Wiper Radius | 0 |
| Insert Length | 20.066 |
| FamilyName | TDT-.00E |
| number of Indexes | 2 |
| Insert Seat Size | 0 |
| Clearance Angle Major | 7 |
| Subapplication Name | Ext. Grooving |
| Turning Depth of Cut Maximum | 2.007 |
| Application Name | ISO-Turning |
| Corner Radius | 0.1524 |
| Cutting Width | 3.1496 |
| Turning Depth of Cut Minimum | 0.3048 |
| Thickness | 4.699 |
| Cutting Depth Maximum | 0 |
| Body Width | 2.2098 |
| Main Application | IS |
