Irwin Hanson
24606
Tap & Die Sets
Specifications

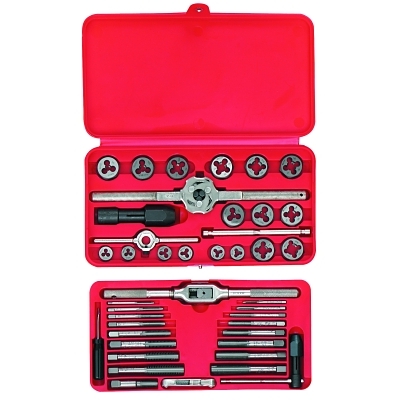

| Long Description | 41-Pc Machine Screw/Fractional Tap and Hex Die Set |
|---|---|
| Short Description | Irwin Hanson® 41-Pc Machine Screw/Fractional Tap and Hex Die Sets |
| Material | High Carbon Steel |
| Tap Type | Plug; Taper |
| Number Of Flutes | 4 |
| Die Type | Hex Fixed |
| Type | Size Range #4 to 1/2 in |
| Includes | 41-pc set in plastic case includes the following items: Machine Screw Plug Tap and 5/8 in Hexagon Dies in sizes: 4 - 40 NC; 6 - 32 NC; 8 - 32 NC; 10 - 24 NC; 10 - 32 NF; 12 - 24 NC Fractional Plug Tap and 1 in Hexagon Dies in sizes: 1/4 in - 20 NC; 1/4 in - 28 NF; 5/16 in - 18 NC; 5/16 in - 24 NF; 3/8 in - 16 NC; 3/8 in - 24 NF; 7/16 in - 14 NC; 7/16 in - 20 NF; 1/2 in - 13 NC; 1/2 in - 20 NF Pipe Thread Plug Tap and 1 in Hexagon Dies in sizes: 1/8 in - 27 NPT Threading Tools: Adjustable Die Stock - 1 in; Plain Die Stock - 5/8 in Hexagon Dies; Adj. Handle Tap Wrench - Taps No. 0 to 1/2 in; T-Handle Wrench - Taps No. 0 to 1/4 in; Two-in-One Tap Wrench - Taps 1/4 in to 1/2 in; 18 Leaf Standard Thread Pitch Gauge; Empty Plastic Case |
| Country of Origin | US |
