Iscar
2302277

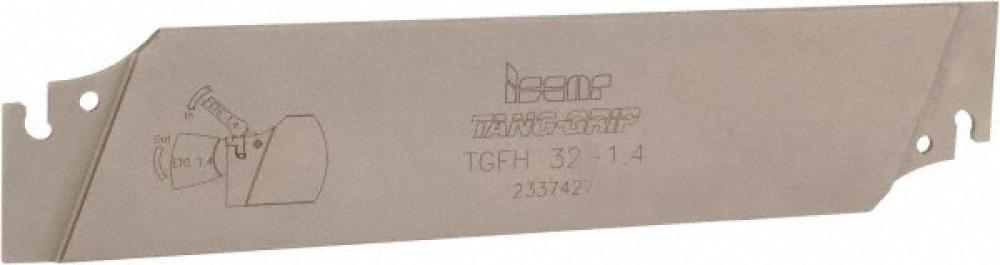

TGFH 32-1.4
Specifications
| Long Description | Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting large diameter parts and for interrupted cuts. Excellent tool and pocket life. |
|---|---|
| Short Description | ISCAR 1.1/4 CUTOFF BLADE FOR TAG-1.4 (REQ ETG-1.4) |
| APP1Name | Ext. Grooving |
| FamilyName | TGFH/R/L |
| Coolant | No |
| Base Length | 5.9060 |
| COO | Israel |
| Blade Height | 1.2600 |
| Weight (OZ) | 3.35097 |
| Width (Inch) | 1.5 |
| Blade Width | 0.0410 |
| Measurement Type | Inch |
