Iscar
2302833

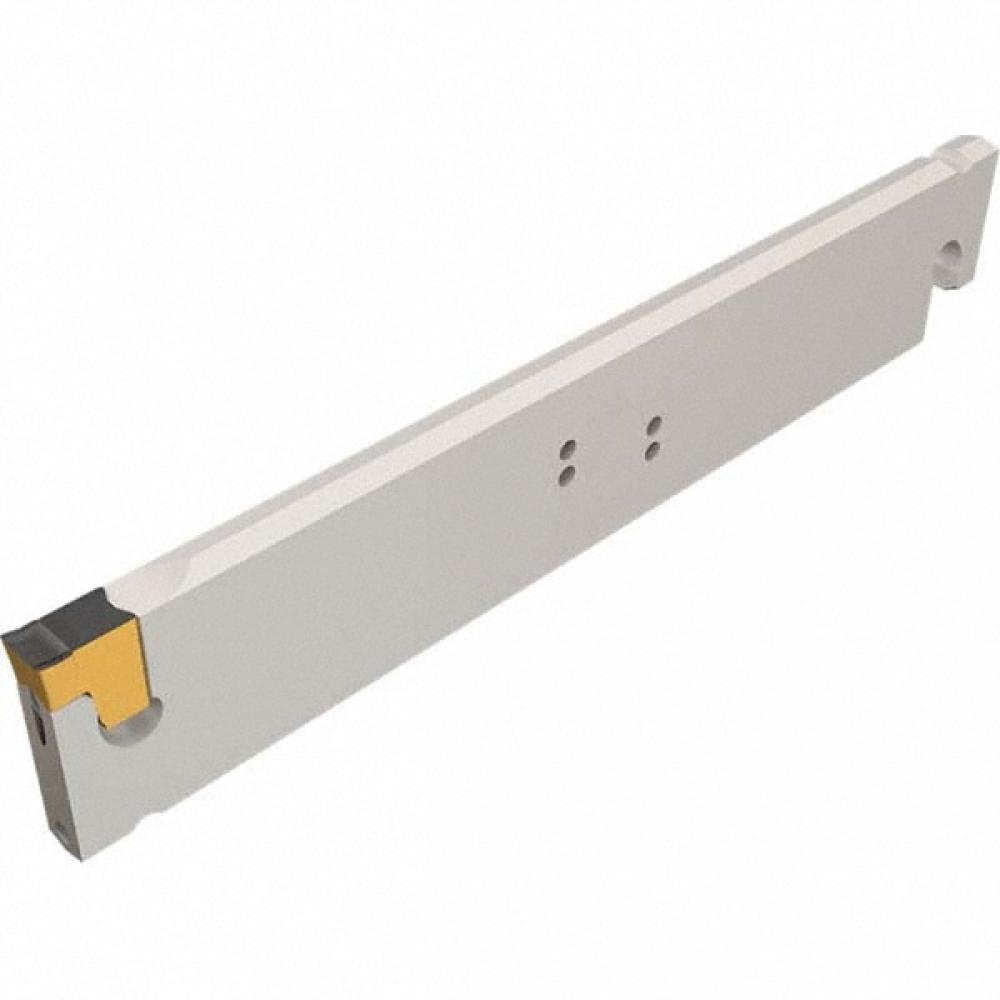

TGSU 35-4-IQ-4Z
Specifications
| Long Description | Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. The blade features no upper jaw and a flat top, which allows for ZERO chip interference. |
|---|---|
| Short Description | ISCAR 1.3/8x7 TANG GRIP BLADE W.146-.177 4PKT REQ ETG-3-4-SH |
| APP1Name | Ext. Grooving |
| FamilyName | TGSU |
| Coolant | No |
| Base Length | 7.0870 |
| COO | Israel |
| Blade Height | 1.3780 |
| Weight (OZ) | 5.99647 |
| Width (Inch) | 1.57 |
| Blade Width | 0.1340 |
| Measurement Type | Inch |
