Iscar
3103439

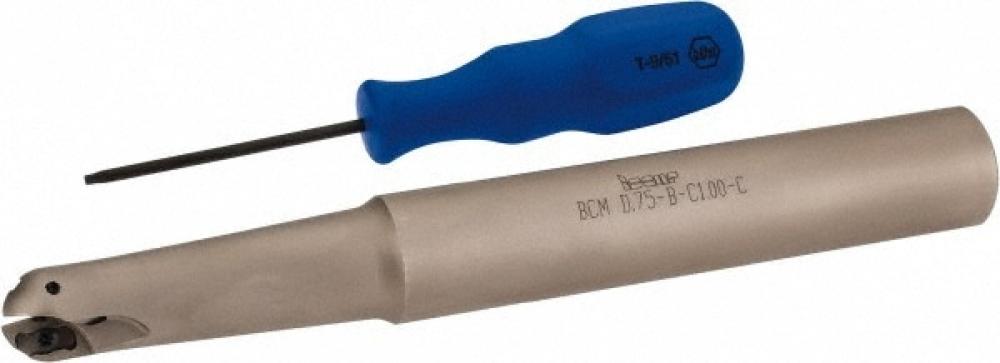

BCM D.75-B-C1.00-C
Specifications
| Short Description | ISCAR 3/4x3x8 BALL MILL USES 2 BCR-D.75, AP.62 |
|---|---|
| Shank Diameter | 1.0000 |
| COO | Israel |
| Long Description | DROPMILL, Ball nose endmills carrying tangent straight edge inserts. Used for semi finishing and finishing at high feed rates. Its unique design provides a fully effective cutter - two cutting edges even at small depths of cut. |
| Number Of Inserts | 2 |
| APP1Name | Helical Interpolation |
| FamilyName | BCM |
| Cutter Diameter | 0.7500 |
| Shank Style | Cylindrical |
| Weight (OZ) | 23.91534 |
| Width (Inch) | 1.57 |
| Coolant Hole | Yes |
| Measurement Type | Inch |
| Radius | 0.3750 |
