Iscar
3106063
FTP D2.0-5-.75-R-LN10
Specifications

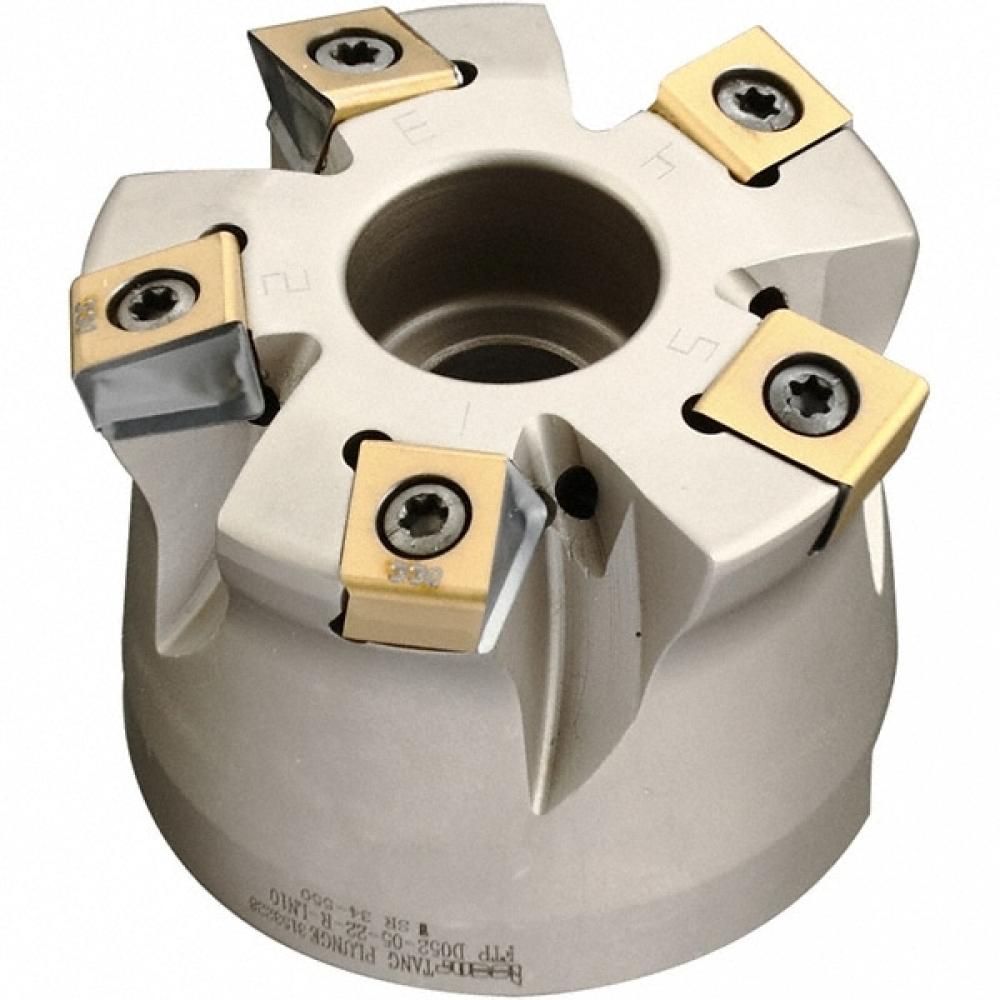

| Short Description | FTP-D2.0-5-.75-R-LN10 ISCAR MILLING CUTTER |
|---|---|
| Long Description | HELITANG, fast feed shell mill, carrying tangentially clamped inserts with 4 cutting edges. .118" maximum face milling D.O.C. and .315" side plunging capacity. Provide excellent side wall surface finish and a flat bottom. |
| Number Of Inserts | 5 |
| APP1Name | Facing |
| FamilyName | FTP-LN10 |
| Cutter Diameter | 2.0000 |
| COO | Israel |
| Flange Diameter | 1.7700 |
| Weight (OZ) | 17.07231 |
| Width (Inch) | 4.53 |
| Measurement Type | Inch |
