Iscar
3106695

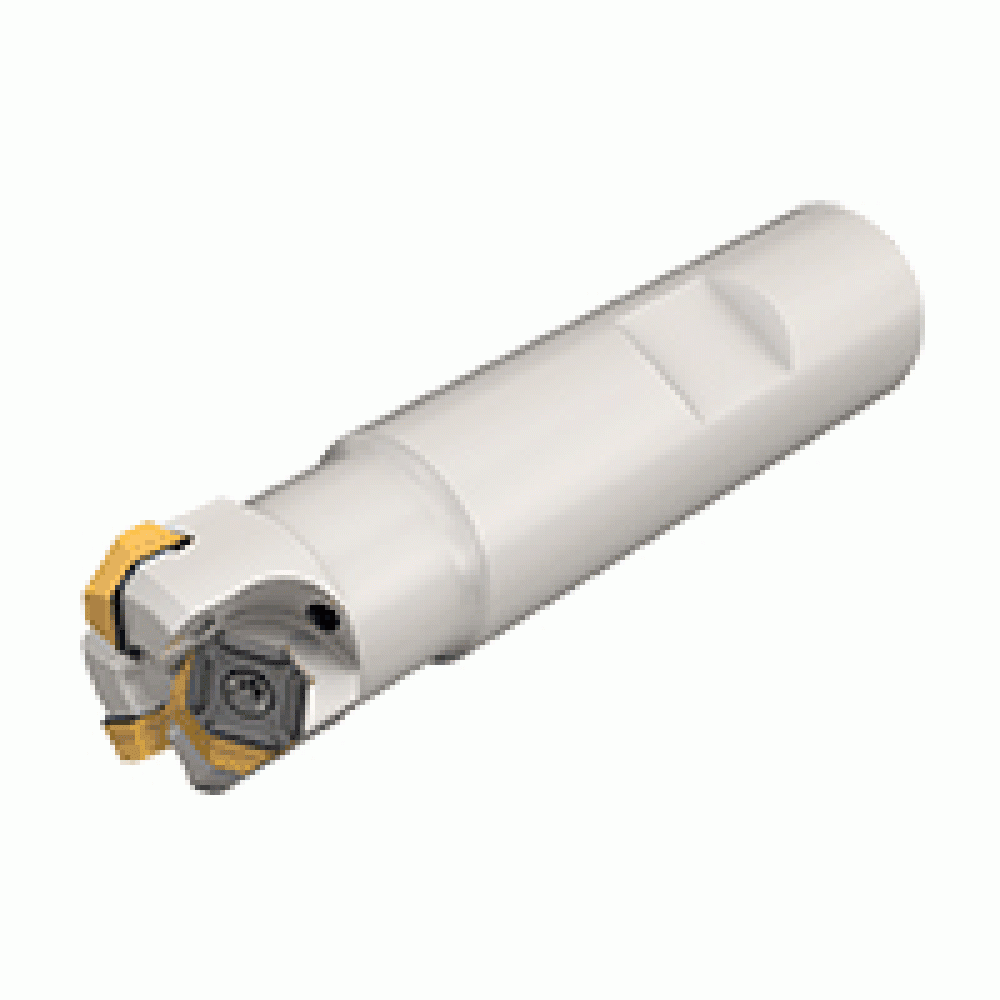

IQ845 ESYD1.25-5W1.25-R05
Specifications
| Short Description | ISCAR IQ845-ESYD1.25-5W1.25-R05 |
|---|---|
| Shank Diameter | 1.2500 |
| COO | Israel |
| Long Description | 50° endmills carrying screw clamped square Inserts with 8 cutting edges. Feature very rigid dove tail clamping and positive pocket orientation. |
| Number Of Inserts | 5 |
| APP1Name | Facing |
| FamilyName | IQ845 ESY-R05 |
| Cutter Diameter | 1.4800 |
| Shank Style | Weldon |
| Weight (OZ) | 22.2575 |
| Width (Inch) | 2.17 |
| Coolant Hole | No |
| Measurement Type | Inch |
