Iscar
3107148
T490 ELN D1.00-3-C1.00-11
Specifications

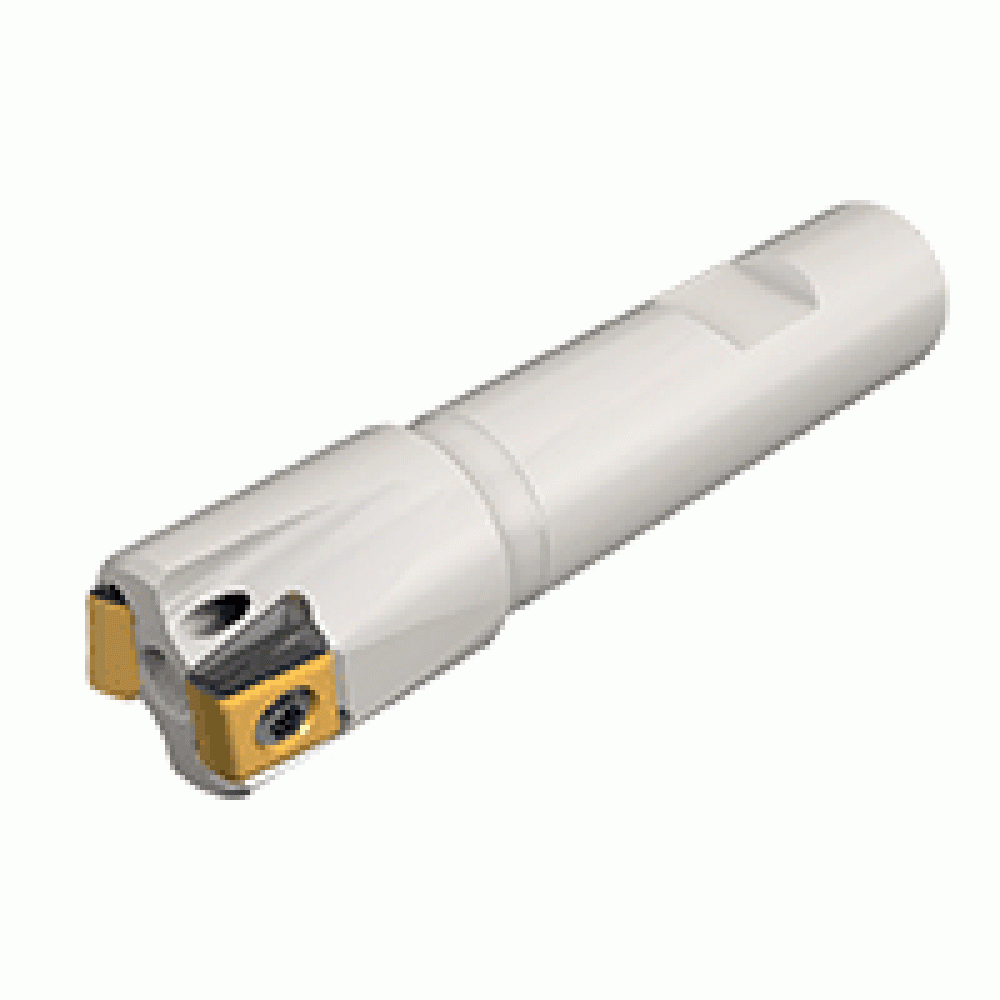

| Short Description | ISCAR 1x1.42x5" HELITANG ENDMILL 1"sh Z3 T490-LNMT-1106 |
|---|---|
| Shank Diameter | 1.0000 |
| COO | Israel |
| Long Description | 90° endmills carrying T490 LN#T 11... tangentially clamped inserts. |
| Number Of Inserts | 3 |
| APP1Name | Facing |
| FamilyName | T490 ELN-11 |
| Cutter Diameter | 1.0000 |
| Shank Style | Cylindrical |
| Weight (OZ) | 19.68254 |
| Width (Inch) | 2.17 |
| Coolant Hole | No |
| Measurement Type | Inch |
