Iscar
3308134

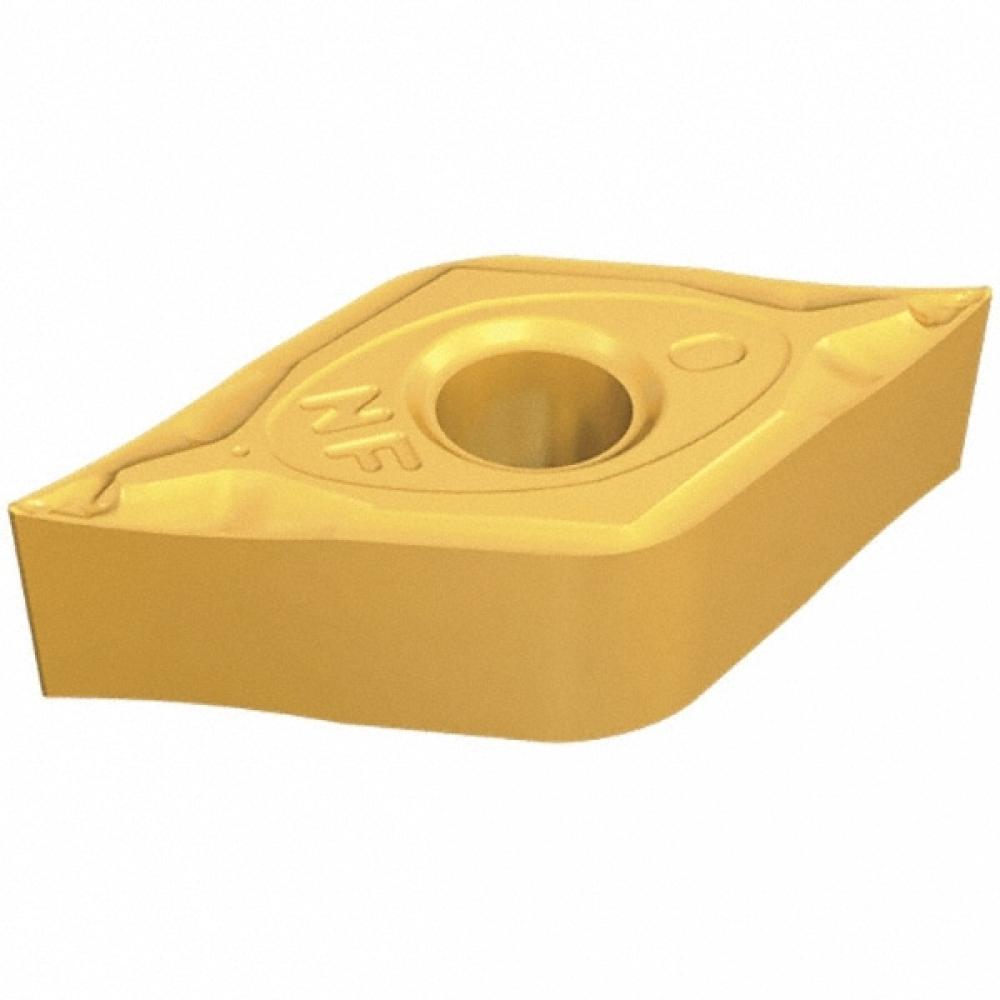

DNMG 332-NF IC830
Specifications
| Coating/Finish | AlTiN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | DNMG |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR DNMG-332-NF-IC830 |
| Long Description | Double-sided 55° rhombic insert, used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.46 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.14 |
| Minimum Feed (Decimal) | 0.0031 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp |
| Clearance Angle | Negative |
| Machining Application | Medium-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided 55° Rhombic Inserts for Semi-Finishing and Finishing Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.27 OZ |
| Width | 1.57 Inch |
| Insert Coating | AlTiN+TiN |
| APP1Name | Ext. 55° Diamond 62.5° Approac |
| FamilyName | DNMG-NF |
| Max. Depth Of Cut | 0.1380 |
| Insert Style | DNMG |
| Insert Shape | 55° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.2716 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
