Iscar
3308175

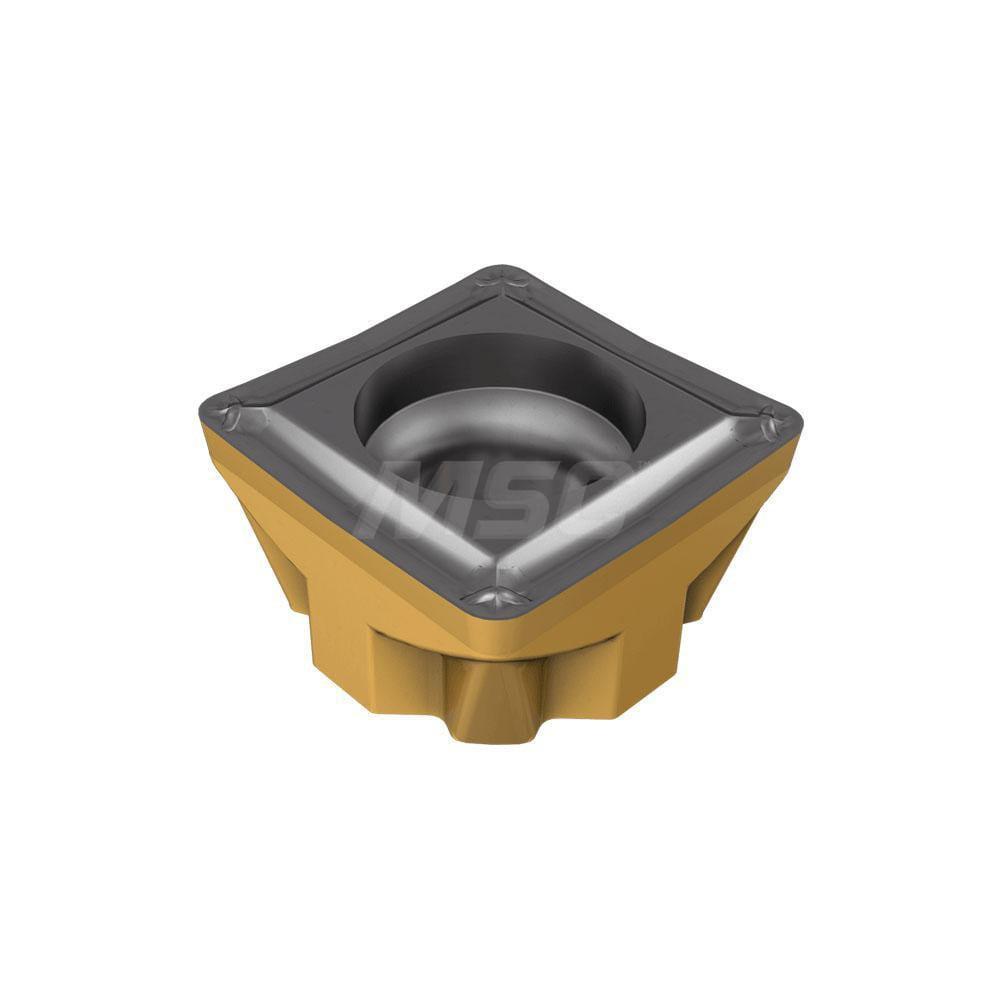

SC45MT 100508-SM IC830
Specifications
| Coating/Finish | AlTiN+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | SC45 |
| Thickness (Inch) | 0.2 |
| Short Description | ISCAR SC45MT-100508-SM-IC830 |
| Long Description | Single-sided square insert. Used for semi-finishing and finishing on a wide range of materials including soft materials and exotic alloys (part of the CHAMELEON multifunction system). |
| Unit Of Measure | Imperial |
| Shape | Square |
| Insert Edge Length (Decimal) | 0.38 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.0039 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp |
| Clearance Angle | 7 deg Positive |
| Machining Application | Medium-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Single-Sided Square Inserts for Finishing Applications (CHAMELEON Multifunction Pocket System) |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.18 OZ |
| Width | 1.57 Inch |
| Insert Coating | AlTiN+TiN |
| APP1Name | Ext. 90°Square 45°Face&Turn Ap |
| FamilyName | SC45MT-SM |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | SC45 |
| Insert Shape | 90° Square |
| Insert Thickness | 0.1970 |
| Weight (OZ) | 0.17989 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
