Iscar
3308178

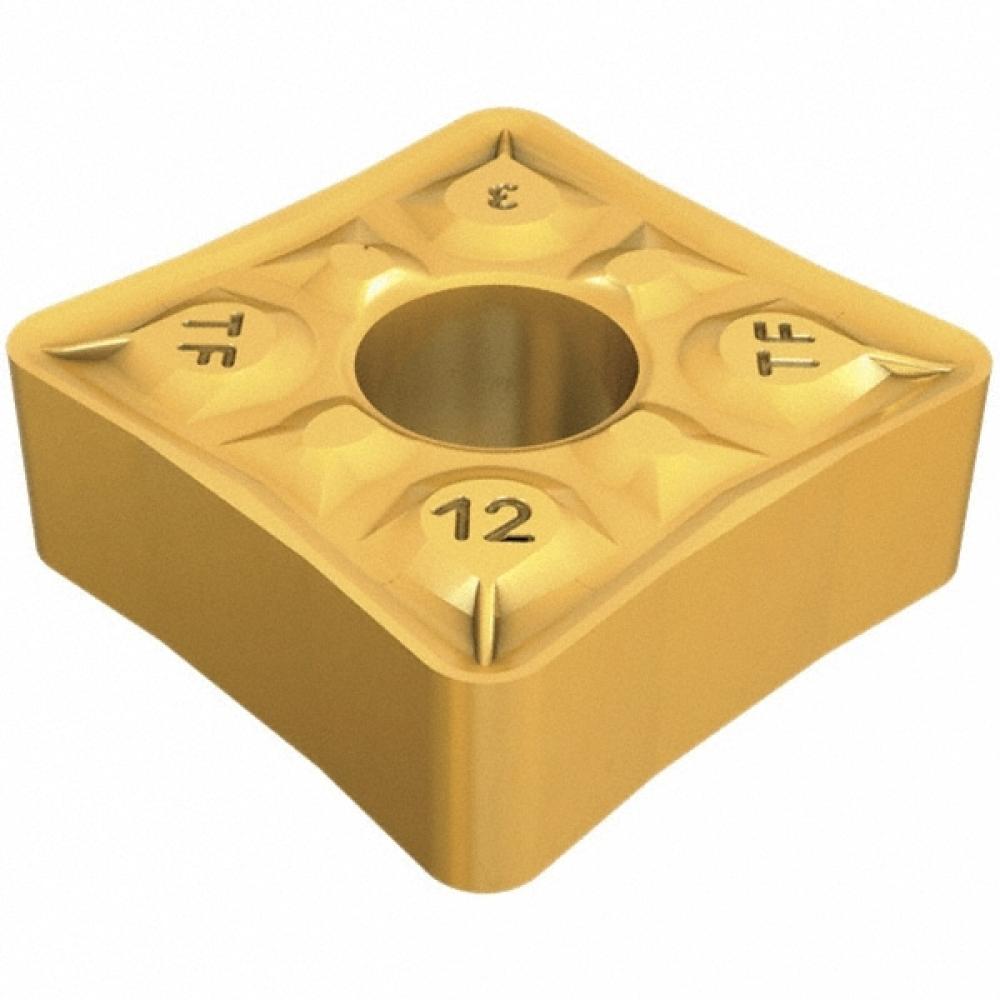

QNMG 332-TF IC830
Specifications
| Coating/Finish | AlTiN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | QNMG |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR QNMG-332-TF-IC830 |
| Long Description | Double-sided inserts with four 80° corners, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. |
| Unit Of Measure | Imperial |
| Shape | Square |
| Insert Edge Length (Decimal) | 0.41 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.16 |
| Minimum Feed (Decimal) | 0.0047 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp |
| Clearance Angle | Negative |
| Machining Application | Medium-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided Inserts with Four 80° Corners for General Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.24 OZ |
| Width | 1.57 Inch |
| Insert Coating | AlTiN+TiN |
| APP1Name | Ext. 80° Q#MG 95° Approach |
| FamilyName | QNMG-TF |
| Max. Depth Of Cut | 0.1570 |
| Insert Style | QNMG |
| Insert Shape | 90° Square |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.23986 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
