Iscar
3308182

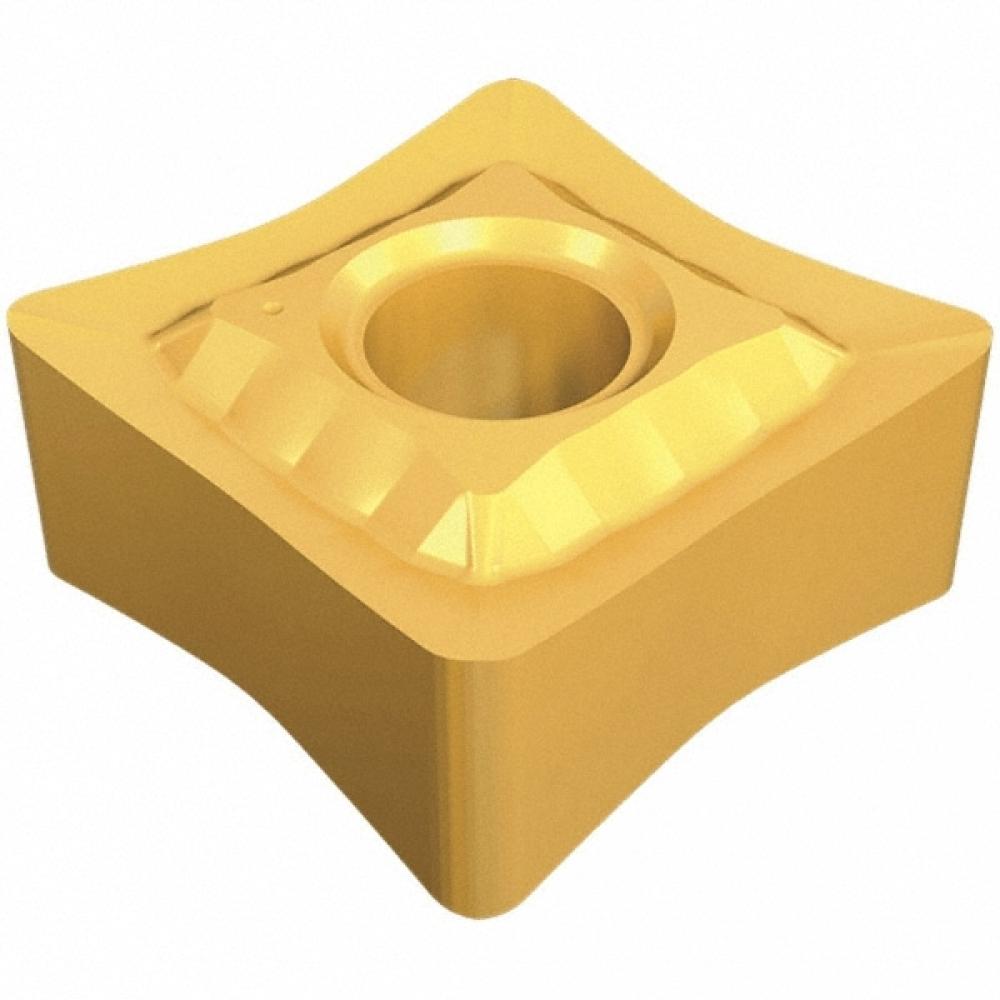

QNMG 332-PP IC830
Specifications
| Coating/Finish | AlTiN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.38 |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | QNMG |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR QNMG-332-PP-IC830 |
| Long Description | Double-sided insert with four 80° corners, very positive rake, sharp- and positive-radial edge. For heat-resistant alloys, stainless steel, aluminum alloys, and soft, low carbon steel. |
| Unit Of Measure | Imperial |
| Shape | Square |
| Insert Edge Length (Decimal) | 0.41 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.16 |
| Minimum Feed (Decimal) | 0.01 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp |
| Clearance Angle | Negative |
| Machining Application | Medium-Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided Inserts with Four 80° Corners for General Applications |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.23 OZ |
| Width | 1.57 Inch |
| Insert Coating | AlTiN+TiN |
| APP1Name | Ext. 80° Q#MG 95° Approach |
| FamilyName | QNMG-PP |
| Max. Depth Of Cut | 0.1570 |
| Insert Style | QNMG |
| Insert Shape | 90° Square |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.2328 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
