Iscar
3318156
HFPR 3015 IC806
Specifications

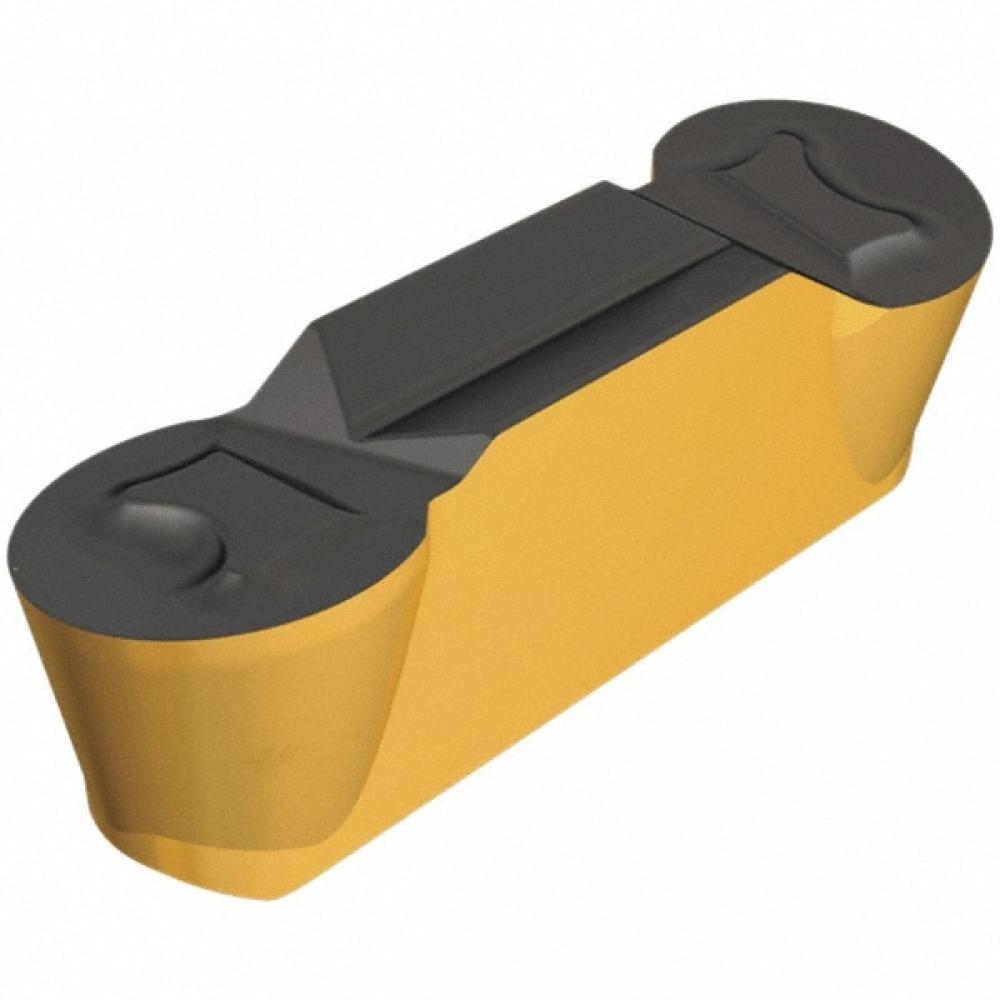

| Long Description | Utility double-ended full radius face machining inserts |
|---|---|
| Short Description | ISCAR HFPR-3015-IC806 |
| Insert Width | 0.1180 |
| Insert Designation | HFPR |
| APP1Name | Face Grooving |
| FamilyName | HFPR/L (full radius) |
| COO | Israel |
| Work Material | Hi Temp |
| Coating | AlTiN "SUMO TEC" |
| External/Internal | External |
| Weight (OZ) | 0.14815 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.0590 |
