Iscar
3318169
HFPL 5025 IC806
Specifications

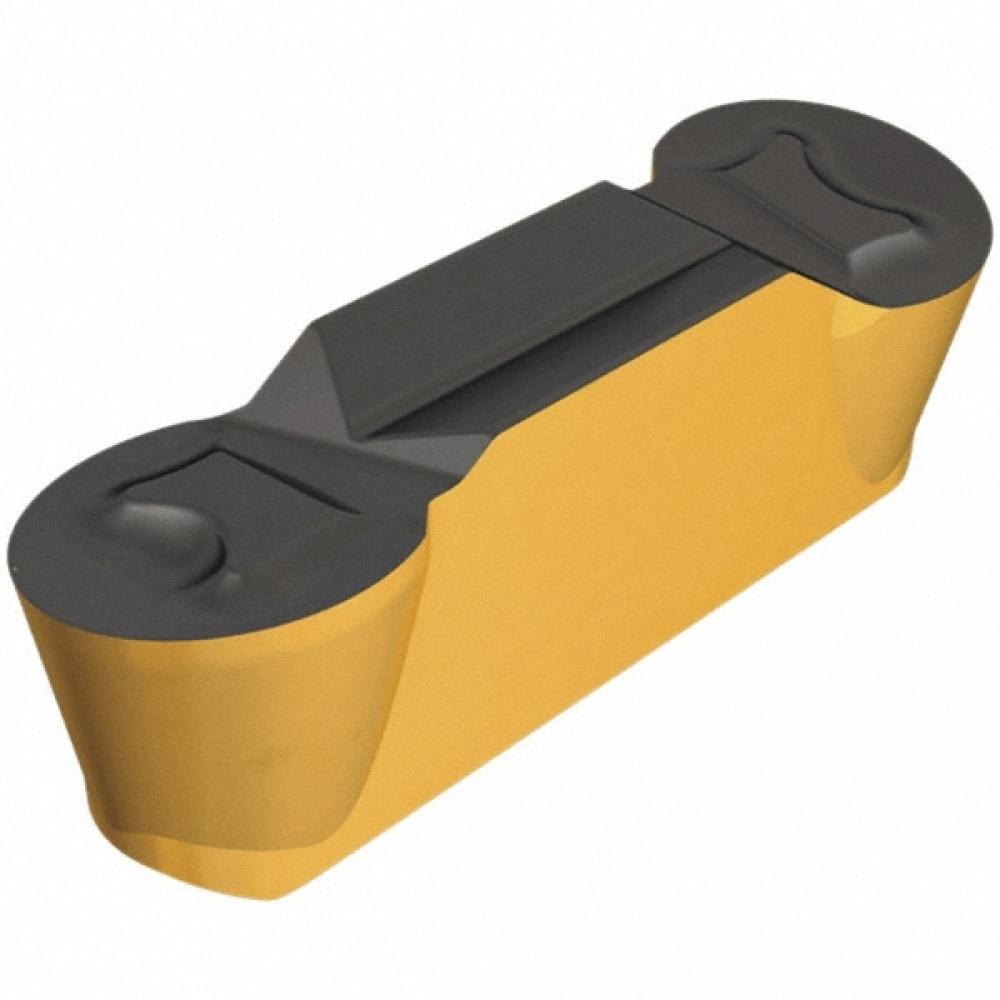

| Long Description | Utility double-ended full radius face machining inserts |
|---|---|
| Short Description | ISCAR HFPL-5025-IC806 |
| Insert Width | 0.1970 |
| Insert Designation | HFPL |
| APP1Name | Face Grooving |
| FamilyName | HFPR/L (full radius) |
| COO | Israel |
| Work Material | Hi Temp |
| Coating | AlTiN "SUMO TEC" |
| External/Internal | External |
| Weight (OZ) | 0.22575 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.0980 |
