Iscar
3320683

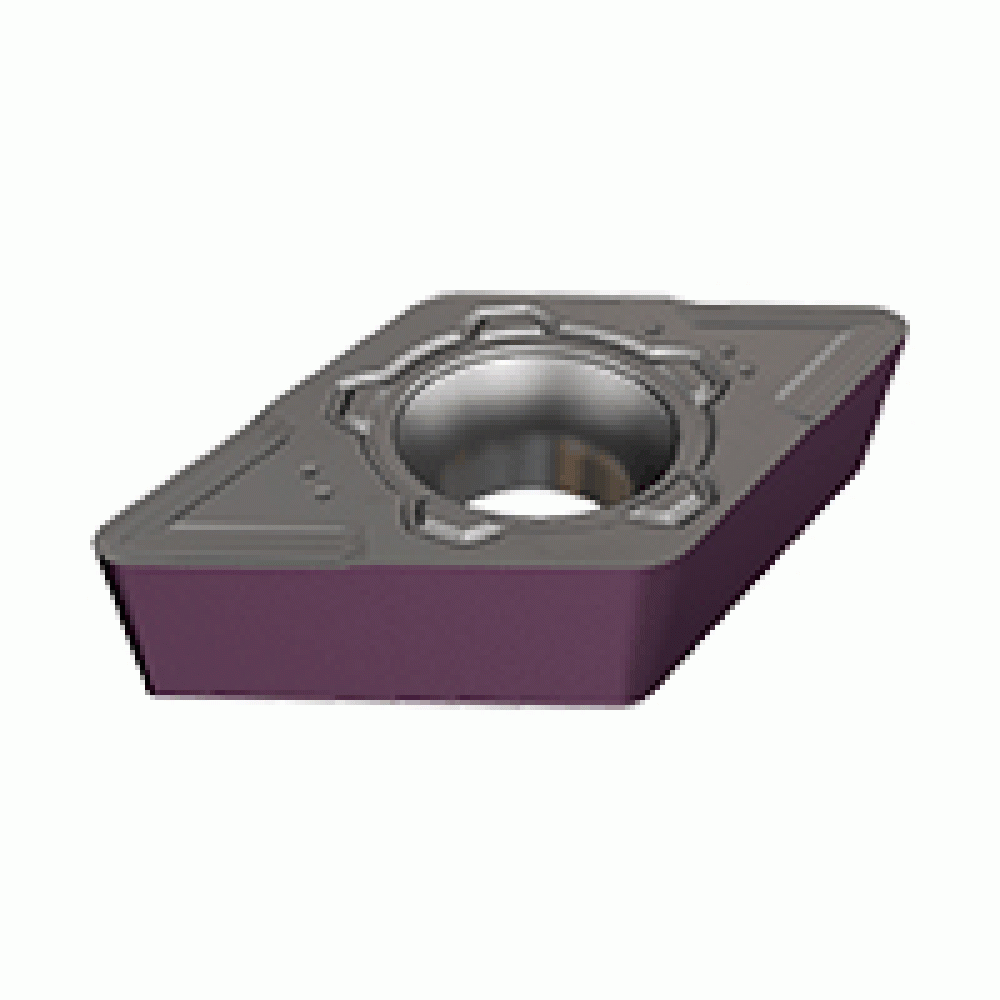

DCMT 2-2-M3M IC807
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 55 degrees |
| Style | DCMT |
| Short Description | ISCAR DCMT 2-2-M3M IC807 |
| Long Description | 55° rhombic 7° positive flank inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | 55° Rhombic Positive Flank Inserts for Machining Stainless and Low Carbon Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.09 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 55° Diamond 107.5° Appr. |
| FamilyName | DCMT-M3M |
| Weight (OZ) | 0.09171 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
