Iscar
3320975

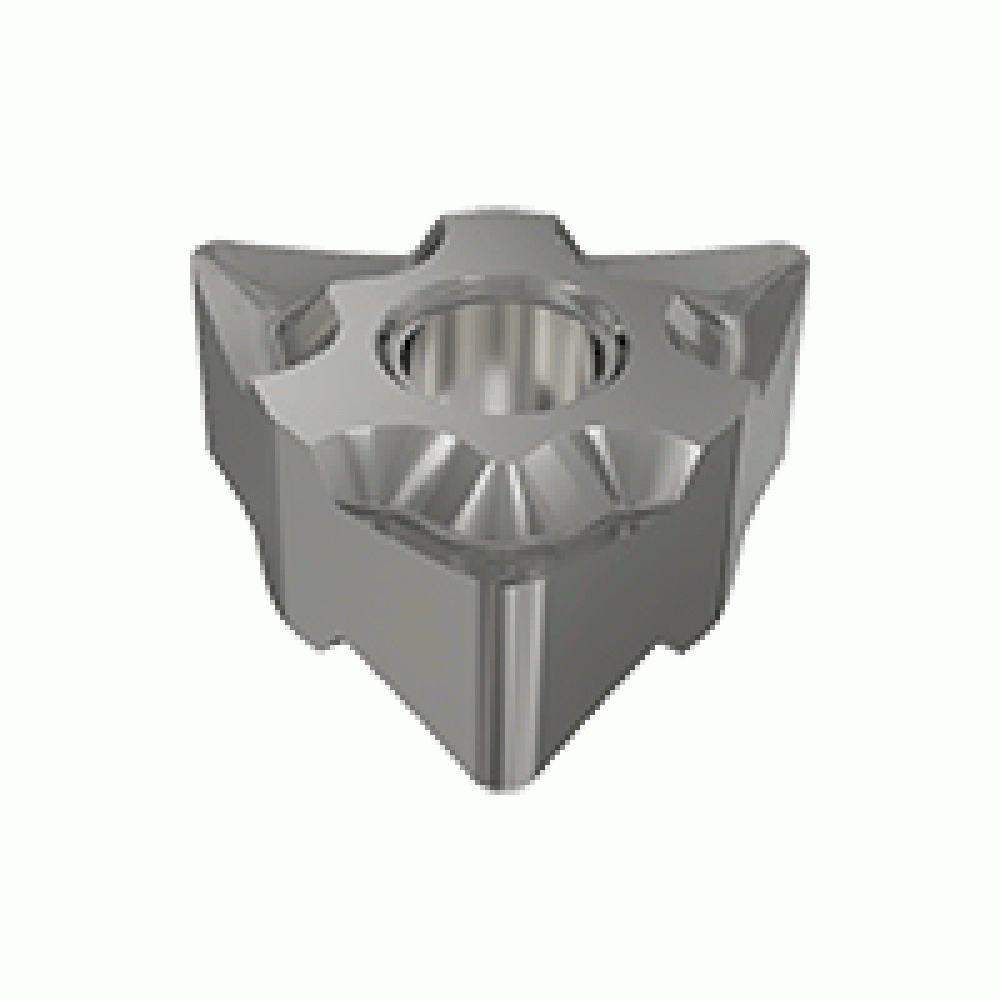

WNGG 332-F3N-P IC20
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Carbide |
| Included Angle | 80 degrees |
| Style | WNGG |
| Short Description | ISCAR WNGG 332-F3N-P IC20 |
| Long Description | Trigon, double-sided positive-radial sharp-edged and very positive and polished rake inserts. Used for finishing aluminum and other non-ferrous materials. Soft cut and low cutting forces eliminate built-up edge. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Double-Sided Sharp Edged Positive and Polished Rake Inserts for Finishing Aluminum and Other Non-Ferrous Materials |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.22 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 80° Trigon 95° Approach |
| FamilyName | WNGG-F3N |
| Weight (OZ) | 0.21869 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
