Iscar
3322826

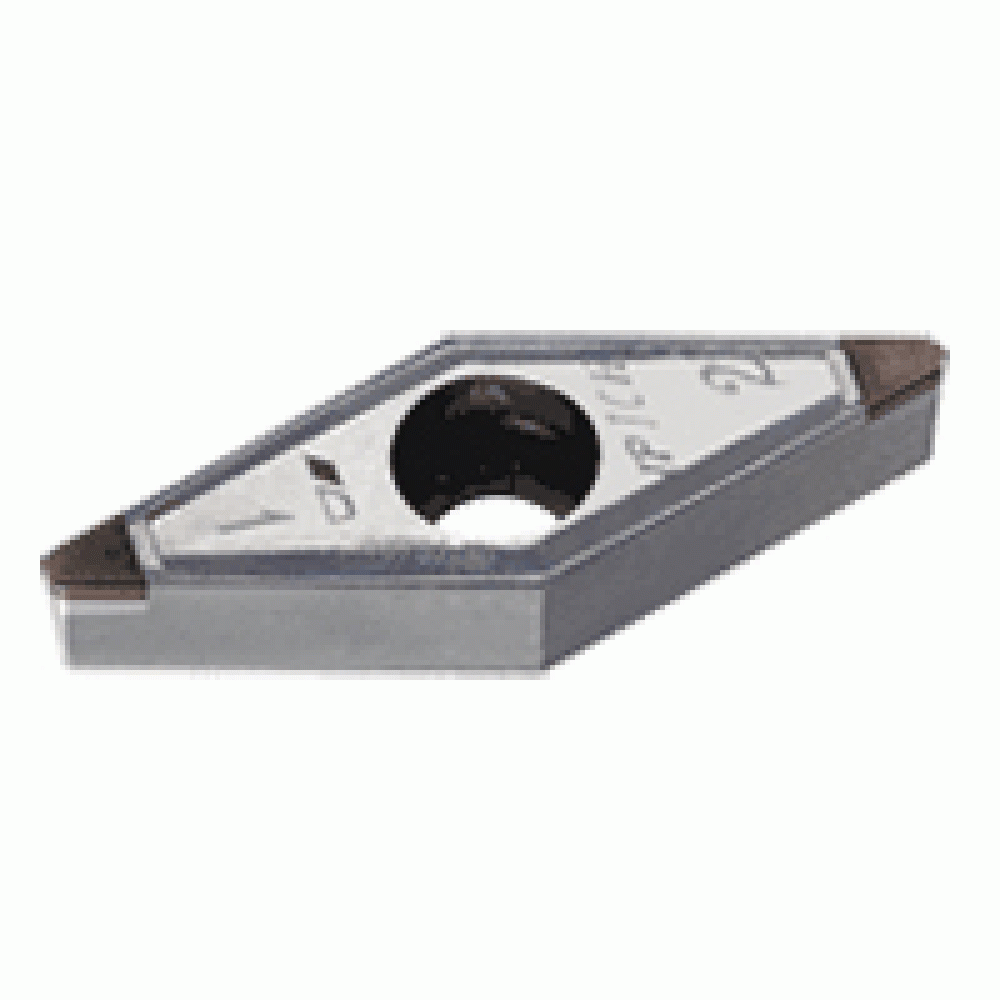

VBGW 331-F2 IB20HC
Specifications
| Coating/Finish | TiN |
|---|---|
| Material | PCBN |
| Size | 0.38 |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | VBGW |
| Thickness (Inch) | 0.19 |
| Short Description | VBGW-331-F2 ISCAR INSERT |
| Long Description | 35° positive rhombic inserts with 2 CBN tips for machining hardened steel. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.65 |
| Maximum Depth of Cut (Decimal) | 0.02 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Hardened Materials |
| Clearance Angle | 5 deg Positive |
| Machining Application | Medium |
| Country of Origin | Japan |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | 35° Positive Rhombic Inserts with 2 CBN Tips for Machining Hardened Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.49 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiN |
| APP1Name | Ext. 35° Diamond 112° Approach |
| FamilyName | VBGW/VBMW-2 (CBN) |
| Max. Depth Of Cut | 0.0200 |
| Insert Style | VBGW |
| Insert Shape | 35° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.49383 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | PCBN |
| Measurement Type | Inch |
