Iscar
3323497

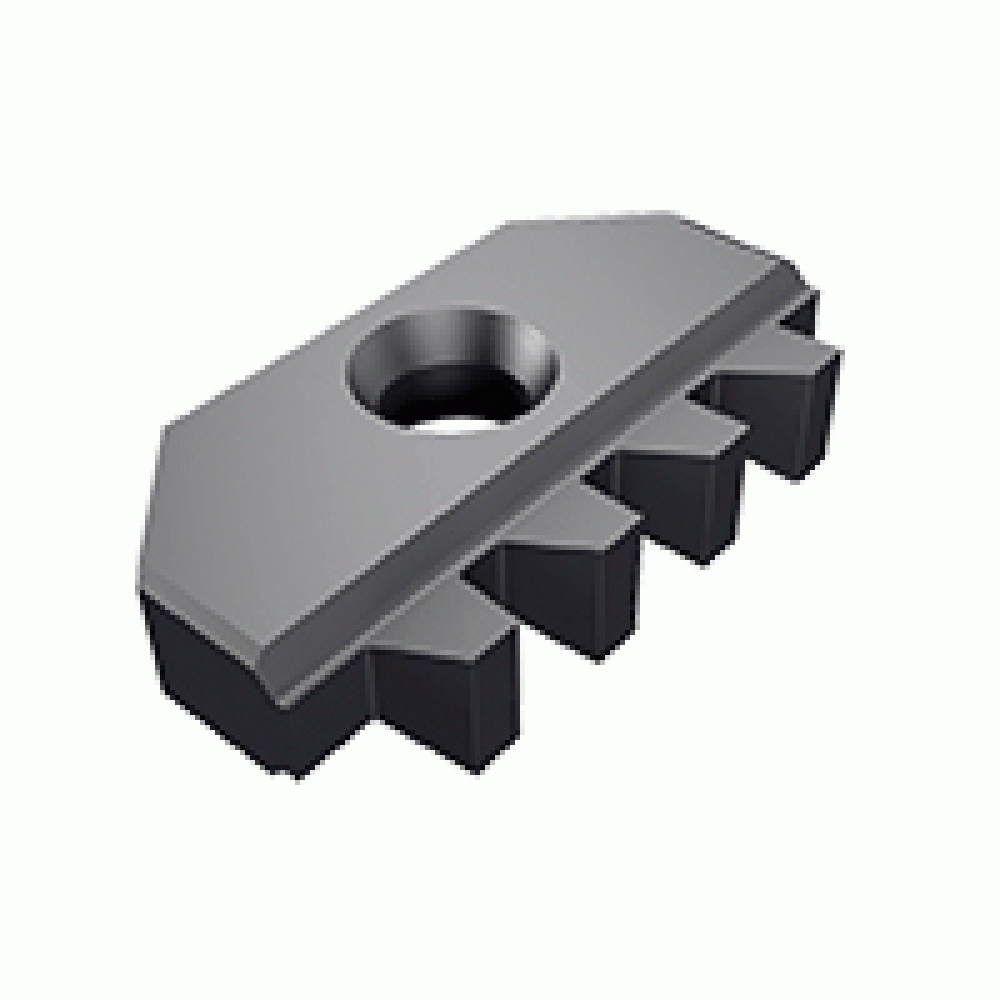

MT LNHU 2104 I10ACME IC908
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | TiAlN |
| Short Description | ISCAR MT LNHU 2104 I10ACME 908 |
| Grade | IC908 |
| Threads per Inch | 10.0 |
| COO | Israel |
| Cutting Edge Material | Carbide |
| Long Description | Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile thread milling inserts for feed screws. |
| Insert Designation | MT |
| APP1Name | Internal Thread Milling |
| FamilyName | MT LNH#-ACME (Internal) |
| External/Internal | Internal |
| Weight (OZ) | 0.61728 |
| Width (Inch) | 1.77 |
| Measurement Type | Inch |
