Iscar
3328816

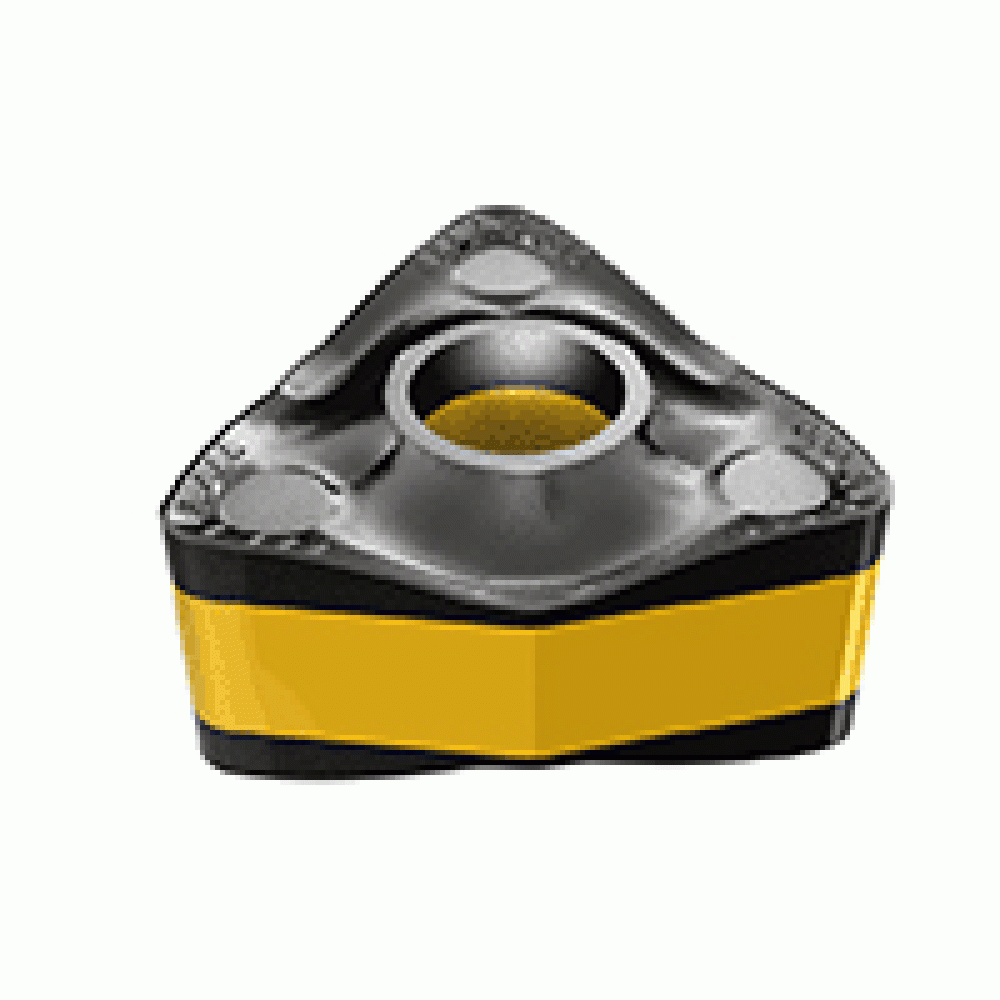

WNMX 342-M3PW IC830
Specifications
| Coating/Finish | AlTiN+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 80 degrees |
| Style | WNMX |
| Short Description | ISCAR WNMX 342-M3PW IC830 |
| Long Description | The insert has a very positive radial, helical cutting edgegand a positive rake angle, which reduces the cutting forces. A wiper corner design produces a high surface finish even at high feed rates. Used for heavy machining applications. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Double-Sided Trigon Inserts with High Helical Cutting Edge for High Metal Removal Rates |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.19 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 80° Trigon 95° Approach |
| FamilyName | WNMX-M3/4PW |
| Weight (OZ) | 0.194 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
