Iscar
3328822

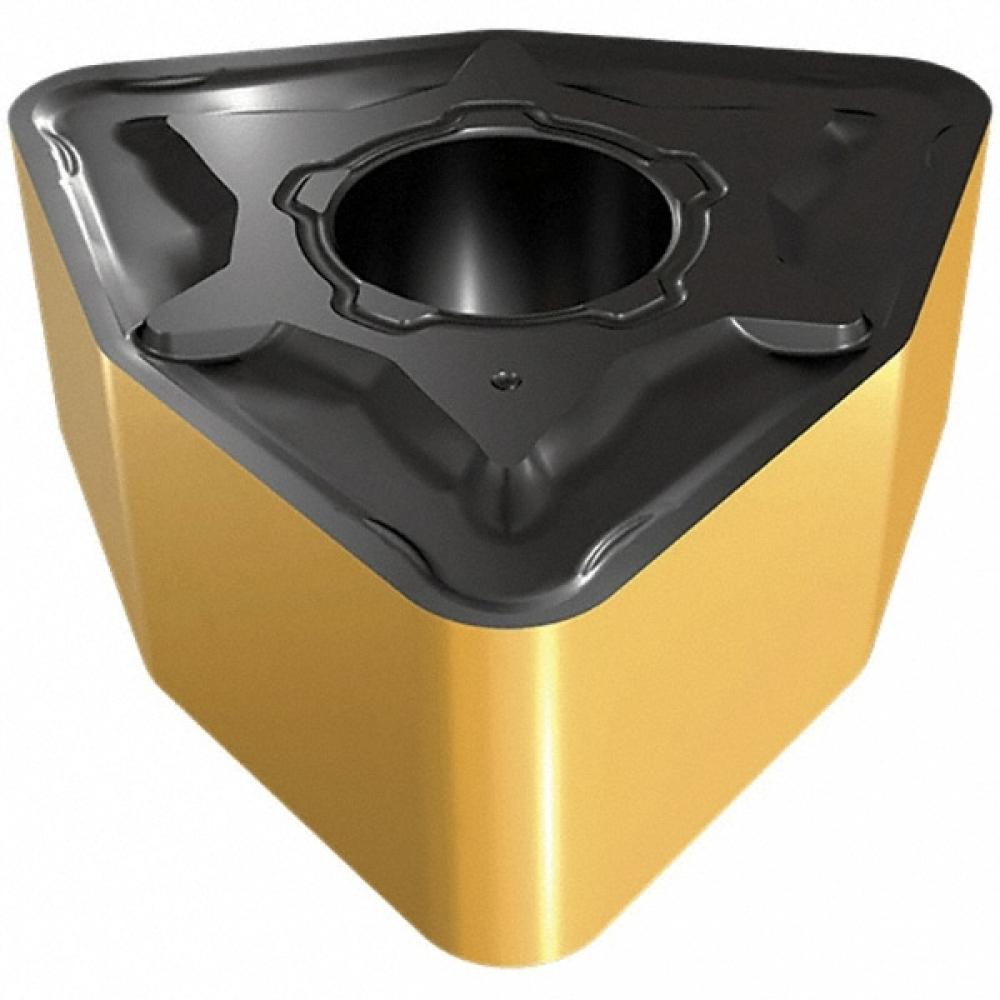

WNMG 432-M3M IC830
Specifications
| Coating/Finish | AlTiN+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 80 degrees |
| Style | WNMG |
| Short Description | WNMG-432-M3M ISCAR INSERT |
| Long Description | Double-sided trigon inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Double-Sided Trigon Inserts for Machining Stainless and Low Carbon Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.38 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 80° Trigon 95° Approach |
| FamilyName | WNMG-M3M |
| Weight (OZ) | 0.37743 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
