Iscar
3328986
TCMT 2-2-F3P IC830
Specifications
| Coating/Finish | AlTiN+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 60 degrees |
| Style | TCMT |
| Short Description | ISCAR TCMT 2-2-F3P IC830 |

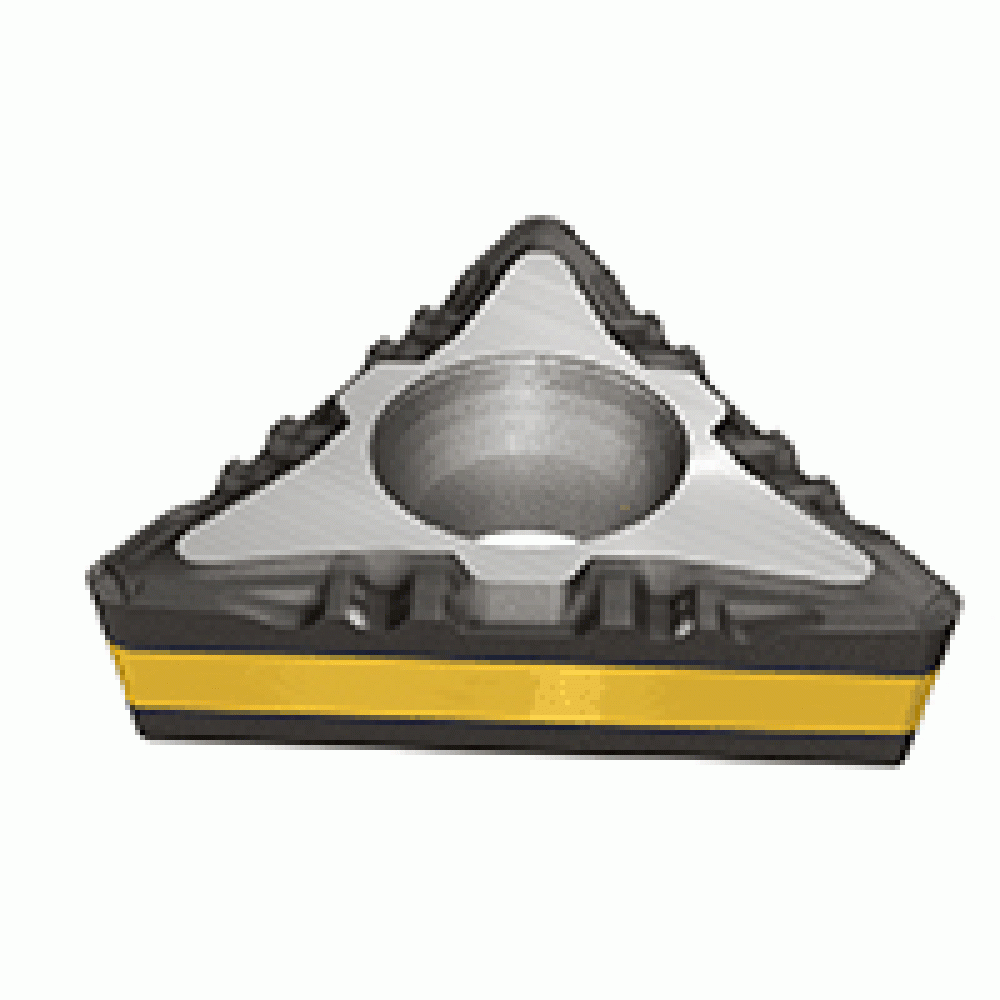

| Long Description | Triangular positive flank inserts for semi-finishing & finishing of steel. Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life. |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Triangular Inserts with a Positive Flank for Semi-Finishing and Finish Turning on Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.10 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 60° Triangle 91° Approach |
| FamilyName | TCMT-F3P |
| Weight (OZ) | 0.09524 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
