Iscar
3333915

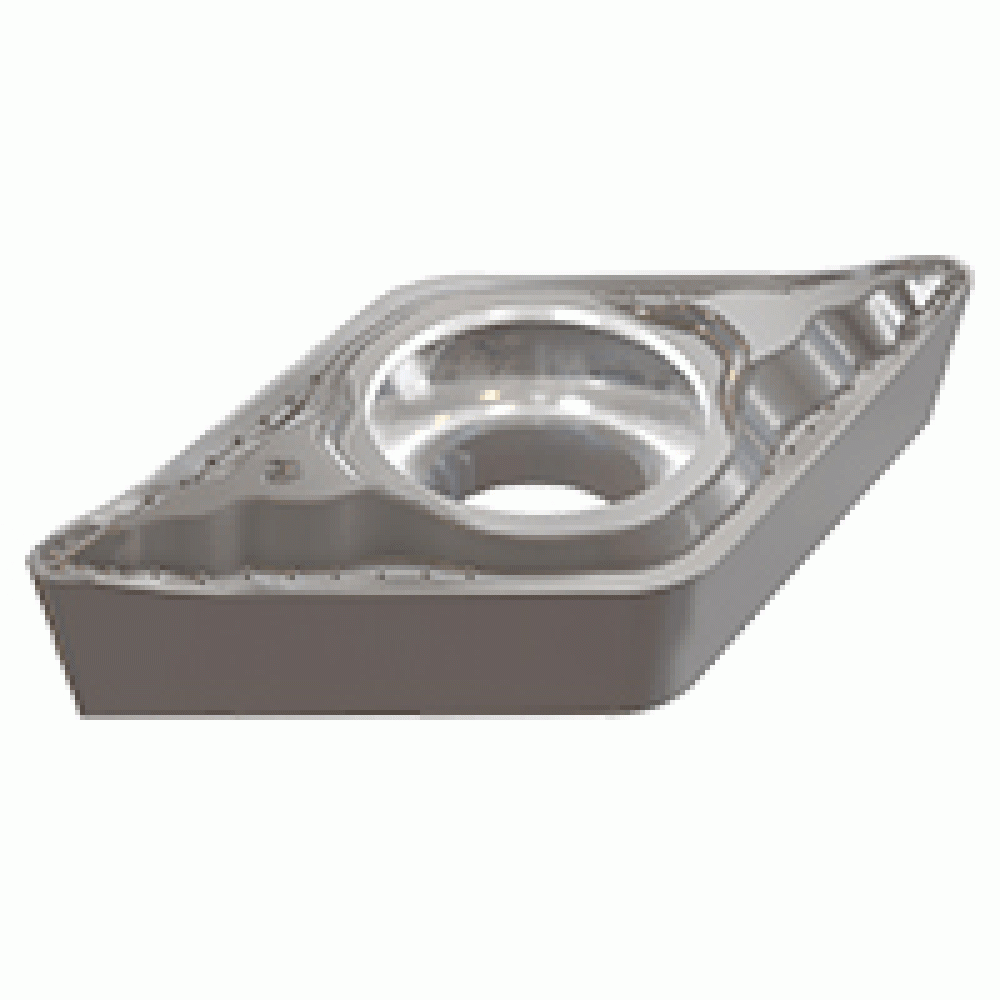

DCGT 2-0-F2M IC907
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 55 degrees |
| Style | DCGT |
| Short Description | ISCAR DCGT-2-0-F2M IC907 CARB INSERT R.008 |
| Long Description | 55° rhombic 7° positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | 55° Rhombic Inserts with a 7° Positive Flank for Semi-Finishing and Finish Turning on Soft Materials and Exotic Alloys |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.09 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 55° Diamond 107.5° Appr. |
| FamilyName | DCGT-F2M |
| Weight (OZ) | 0.08818 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
