Iscar
3337257
CXMG 090404-F3M IC807
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 80 degrees |
| Style | CXMG |
| Short Description | ISCAR CXMG-090404-F3M-IC807 INSERT |

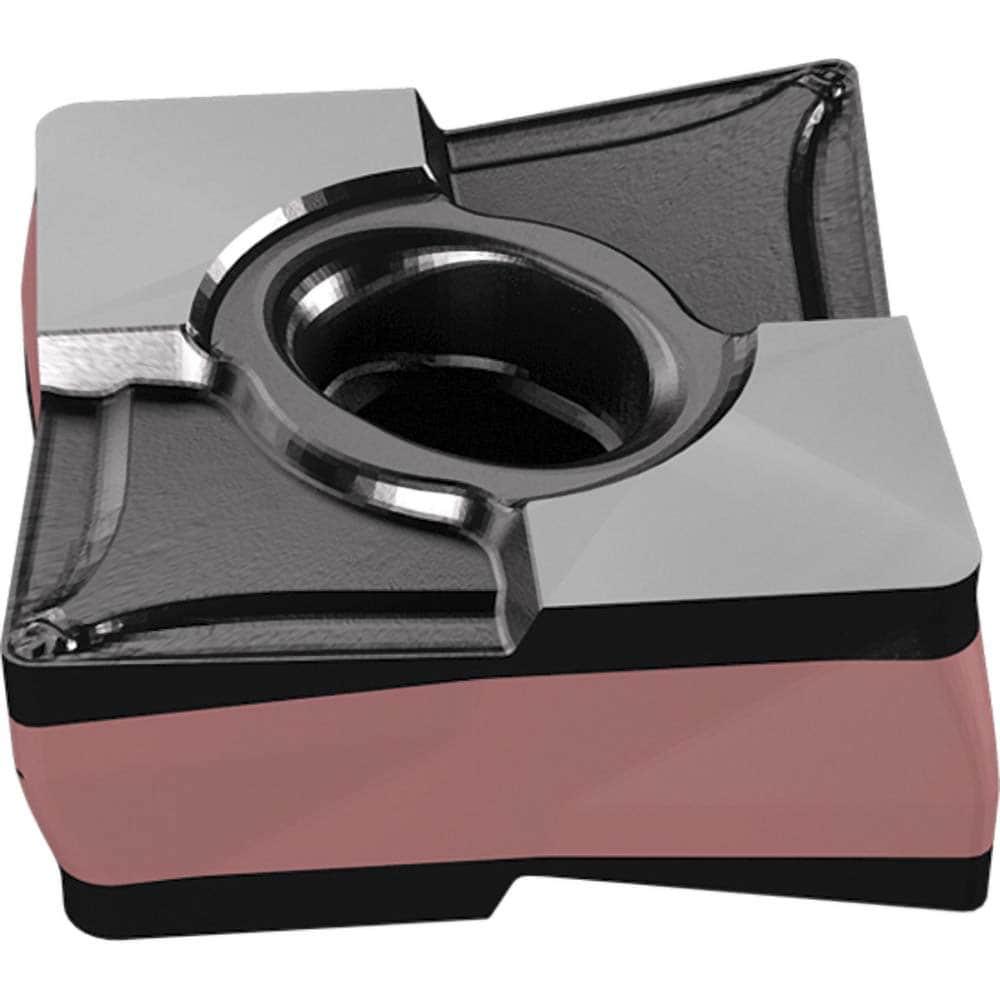

| Long Description | 80° double-sided and double-positive rhombic inserts with a positive rake for finishing on stainless steel and H.T.A. Clamped in a dovetail rigid clamping pocket. Can be regarded as two positive inserts. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | 80° Double-Sided and Double-Positive Inserts with a Positive Rake for Finishing on Stainless Steel and H.T.A. |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.24 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 80° Diamond 95° Approach |
| FamilyName | CXMG-F3M |
| Weight (OZ) | 0.23633 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
