Iscar
3341549

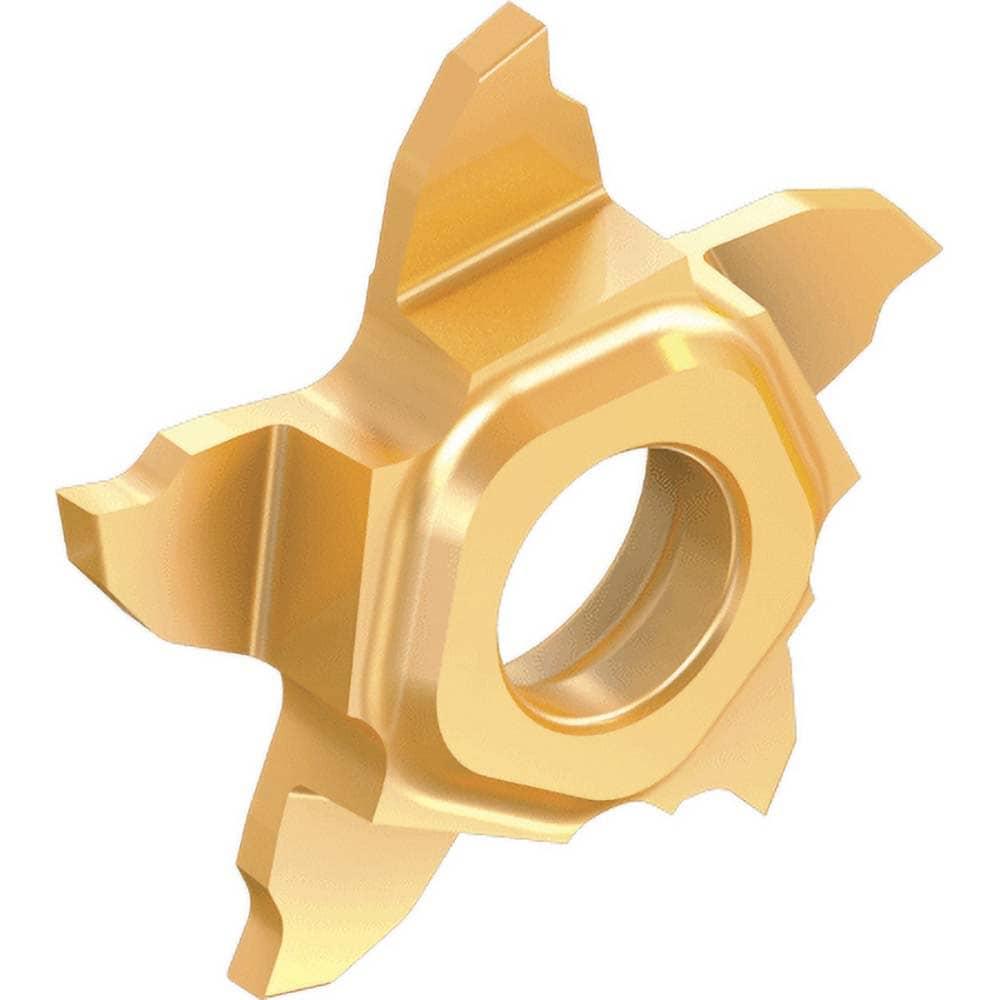

PENTA 17N030P000LS IC1008
Specifications
| Long Description | Precision grooving and parting pentagonal inserts with a very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used on soft materials, thin parts and general parting at low feed. |
|---|---|
| Short Description | ISCAR W.012 PENTA CARB CUTOFF/GRV INSERT R.000 Tmax.024 |
| APP1Name | Ext. Grooving |
| FamilyName | PENTA 17-P-RS/LS |
| COO | Israel |
| Coating | TiAlN+TiN |
| Weight (OZ) | 0.17637 |
| Width (Inch) | 0.71 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
