Iscar
3344995

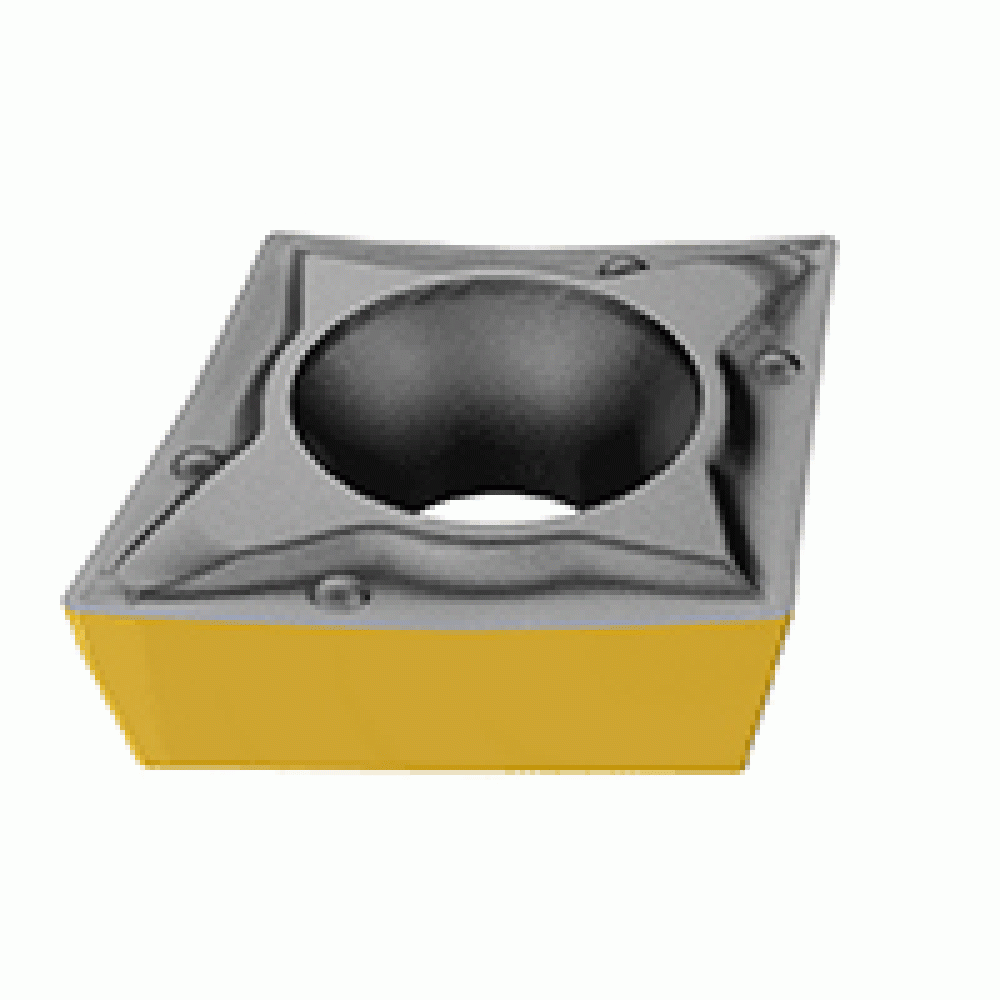

CCMT 3-0-PF IC804
Specifications
| Coating/Finish | AlTiN "SUMO TEC" |
|---|---|
| Material | Carbide |
| Included Angle | 80 degrees |
| Style | CCMT |
| Short Description | ISCAR CCMT 3-0-PF IC804 |
| Long Description | 80° rhombic 7° positive flank inserts. Used for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | 80° Rhombic Inserts with a Positive Flank for Semi-Finishing and Finishing on Soft Materials and Exotic Alloys |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.18 OZ |
| Width | 1.57 Inch |
| APP1Name | Int. 80° Diamond 95° Approach |
| FamilyName | CCMT-PF |
| Weight (OZ) | 0.17989 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
