Iscar
3346006

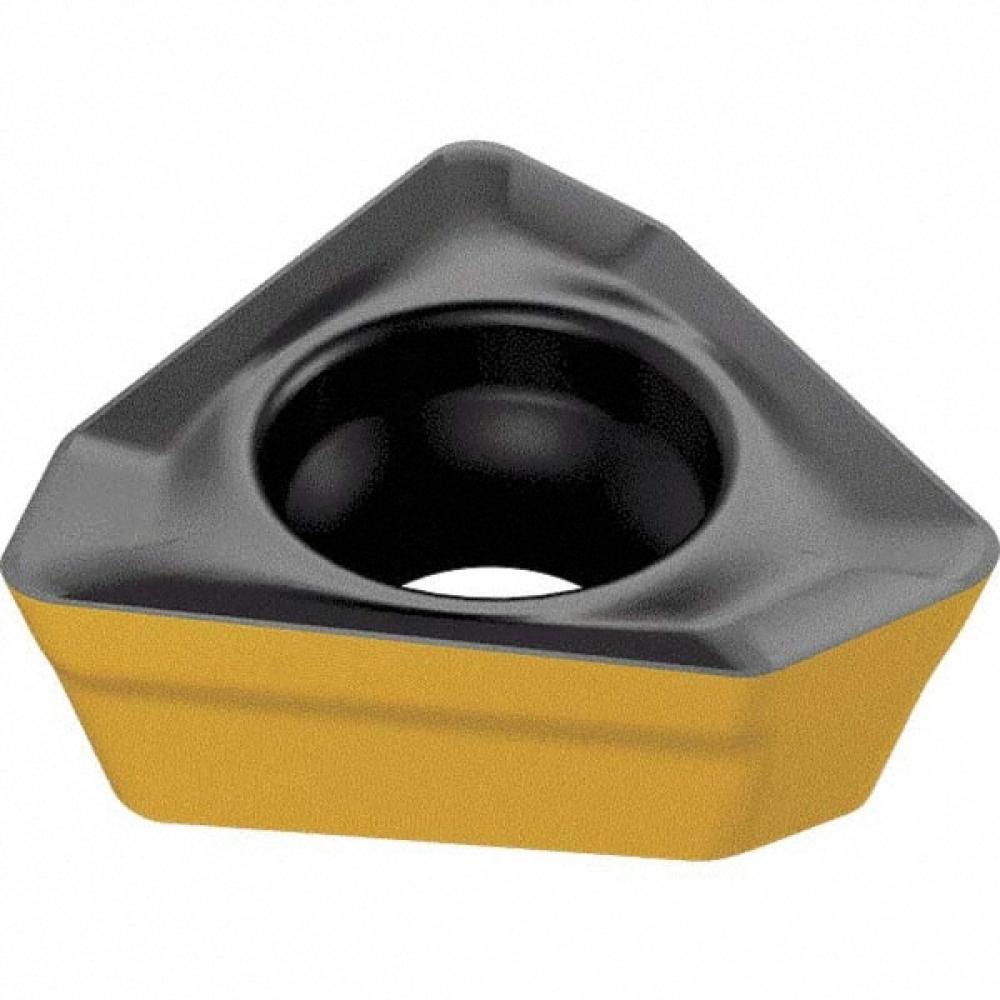

HM390 TPKT 0502PDR IC808
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | TiAlN+AlTiN+TiN |
| Type | Facing |
| Short Description | ISCAR HM390-TPKT-0502PDR IC808 CARB INSERT |
| Long Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications. |
| Shape | Triangular |
| Style | TPKT |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | Triangular Inserts with 3 Helical Cutting Edges for 90° Shoulder Accuracy |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.06 OZ |
| Width | 1.57 Inch |
| APP1Name | Facing |
| FamilyName | HM390 TPKT/CT 0502 |
| Weight (OZ) | 0.05644 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
