Iscar
3346721

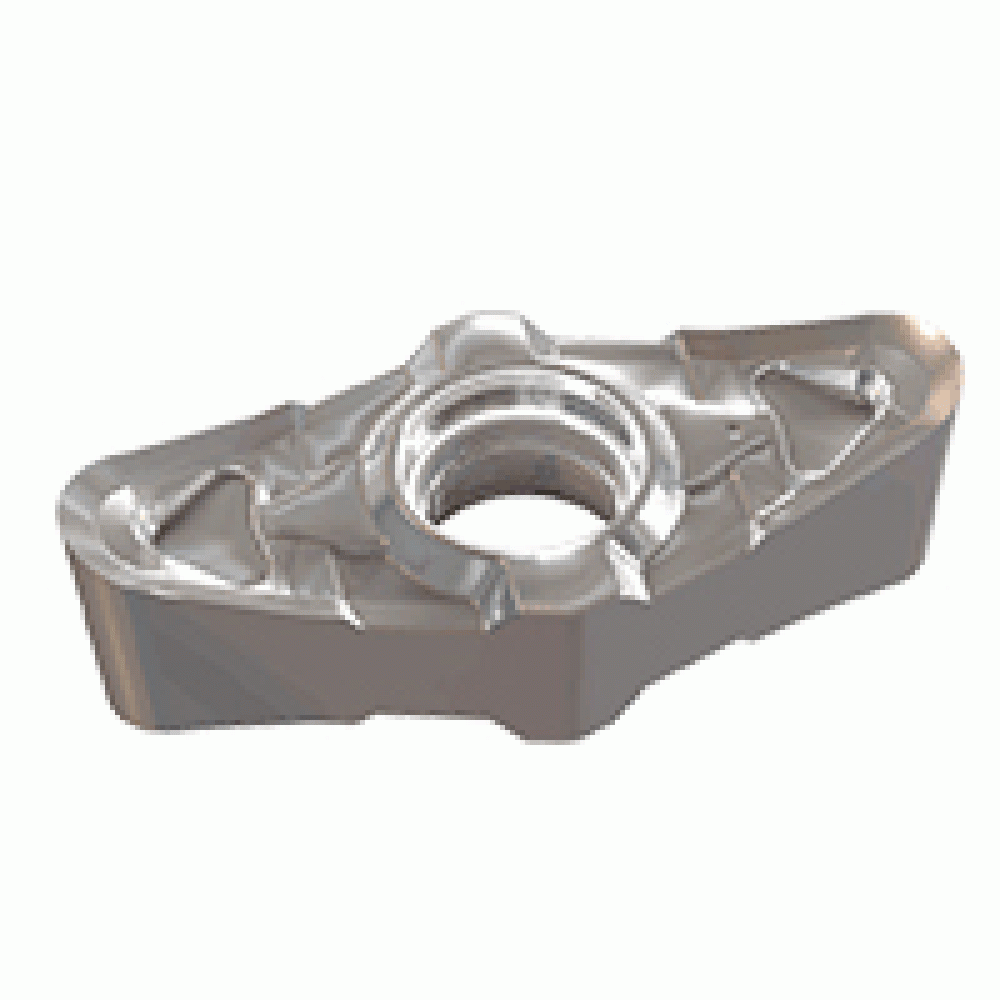

VNGU 220616-R3N IC20
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Carbide |
| Included Angle | 35 degrees |
| Style | VNGU |
| Short Description | ISCAR VNGU 220616-R3N IC20 |
| Long Description | 35° rhombic, double-sided sharp edged positive and polished rake inserts. Used for rough machining on soft and non-ferrous materials. Soft cut and low cutting forces eliminate built-up edge. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Double-Sided Sharp Edged Positive Rake Inserts for Rough Machining Aluminum and Other Non-Ferrous Materials |
| Height | 0.83 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.80 OZ |
| Width | 2.24 Inch |
| APP1Name | Ext 35° Diamond 107.5° Approac |
| FamilyName | VNGU-R3N |
| Weight (OZ) | 0.8 |
| Width (Inch) | 2.24 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
