Iscar
3356019

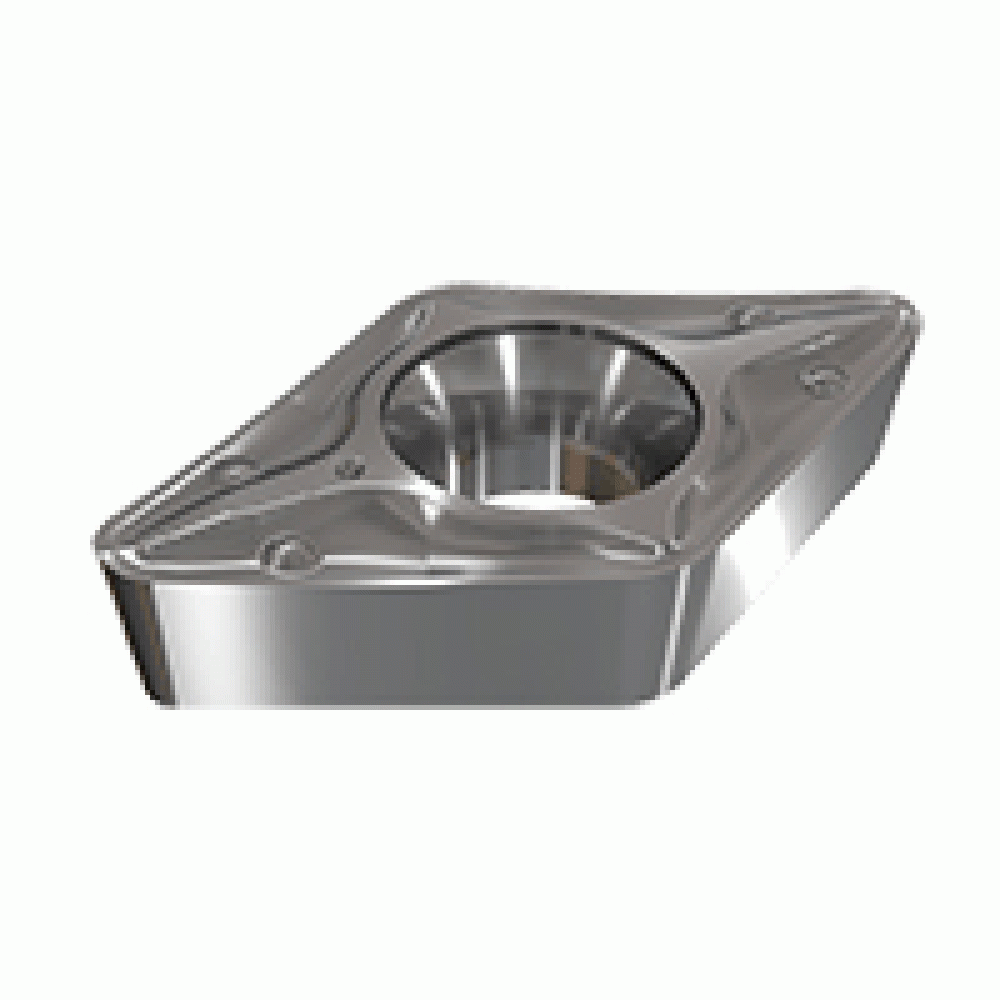

DCGT 3-2-PF IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Material | Carbide |
| Included Angle | 55 degrees |
| Style | DCGT |
| Short Description | ISCAR DCGT 3-2-PF IC908 |
| Long Description | 55° rhombic 7° positive flank inserts. Used for semi-finish and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | 55° Rhombic Inserts with a Positive Flank for Semi-Finish and Finishing on Soft Materials and Exotic Alloys |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.20 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 55° Diamond 107.5° Appr. |
| FamilyName | DCMT/DCGT-PF |
| Weight (OZ) | 0.20459 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
