Iscar
3365111

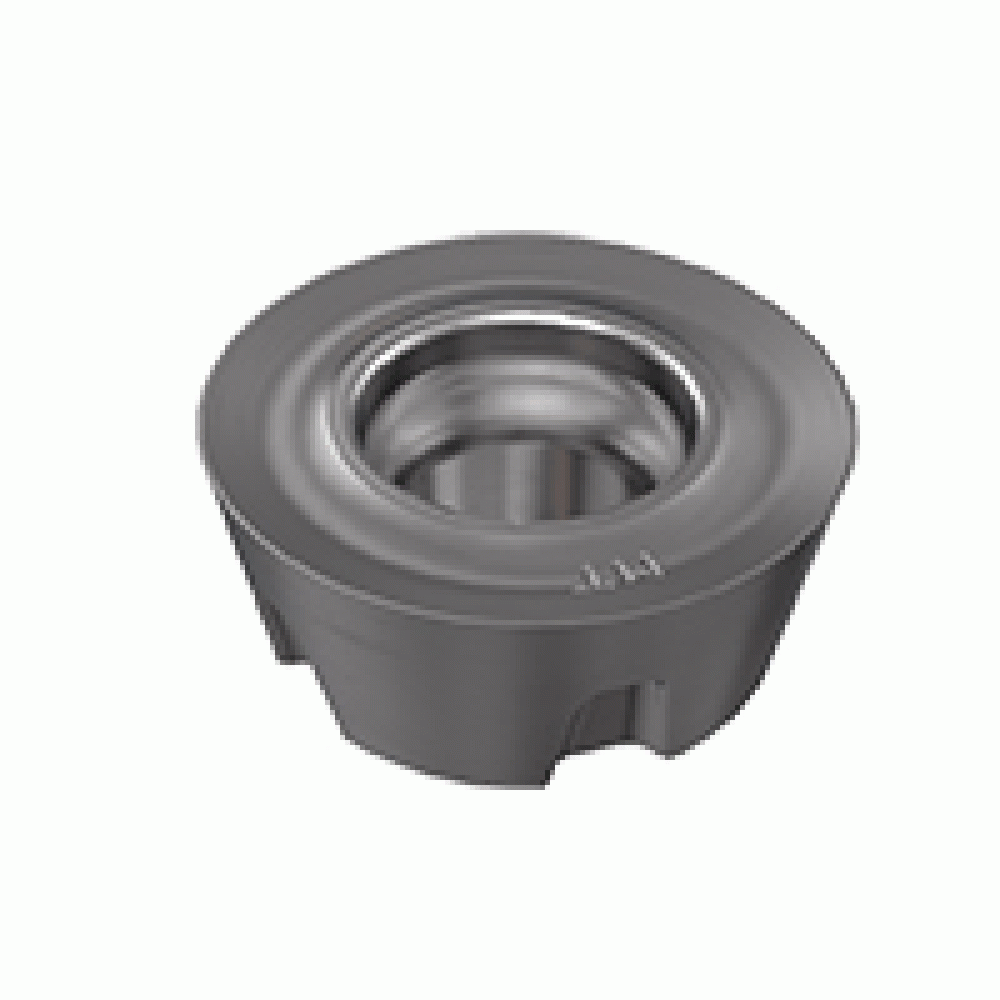

RPMX 1003M0-HT5 IC5820
Specifications
| Coating/Finish | Al2O3 |
|---|---|
| Type | Facing |
| Short Description | ISCAR RPMX 1003M0-HT5 IC5820 |
| Long Description | Round milling inserts with specially shaped indexing grooves. Used for roughing and finishing applications on alloyed and stainless steels, specifically in the die and mold industry |
| Shape | Round |
| Style | RPMX |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | Round Milling Inserts with Specially Shaped Indexing Grooves |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.13 OZ |
| Width | 1.57 Inch |
| APP1Name | Facing |
| FamilyName | RPHX/RPMX |
| Weight (OZ) | 0.12698 |
| Width (Inch) | 1.57 |
| Measurement Type | Inch |
