Iscar
3365652

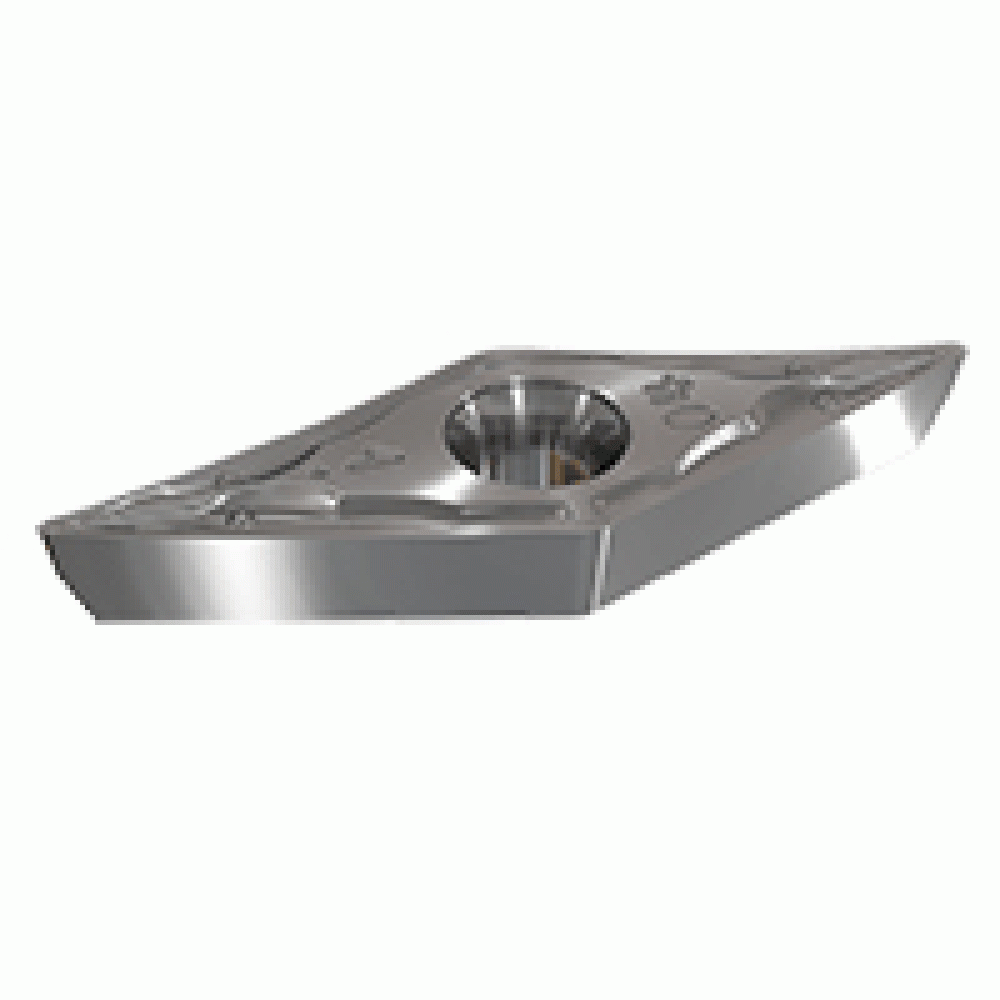

VCGT 22.004-PF IC830
Specifications
| Coating/Finish | AlTiN+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 35 degrees |
| Style | VCGT |
| Short Description | ISCAR VCGT 22.004-PF IC830 |
| Long Description | 35° rhombic 7° positive flank inserts. Used for semi-finish and finish applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | 35° Rhombic Inserts with a Positive Flank for Semi-Finishing and Finishing on Soft Materials and Exotic Alloys |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.13 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 35° Diamond 112° Approach |
| FamilyName | VCGT-MD/PF |
| Weight (OZ) | 0.12698 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
