Iscar
3394304

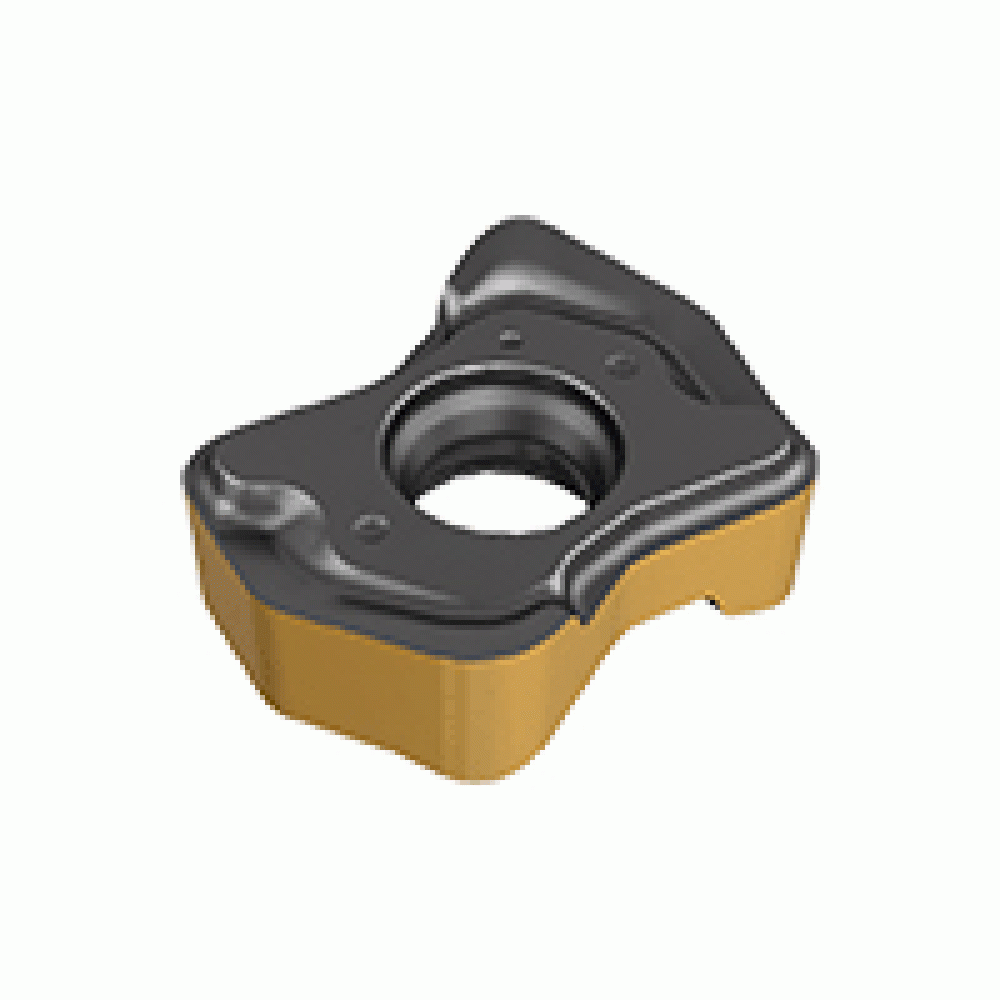

FFX4 XNMU 080620HP IC830
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | AlTiN+TiN |
| Type | Facing |
| Short Description | FFX4 XNMU 080620HP IC830 |
| Long Description | Double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets, profiling and face milling. |
| Shape | Bone |
| Style | XNMU |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | "Bone Shaped" Inserts with 4 Cutting Edges for Fast Feed Milling |
| Height | 0.71 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.65 OZ |
| Width | 2.24 Inch |
| APP1Name | Facing |
| FamilyName | FFX4 XNMU-08 |
| Weight (OZ) | 0.65256 |
| Width (Inch) | 2.24 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
