Iscar
3395625

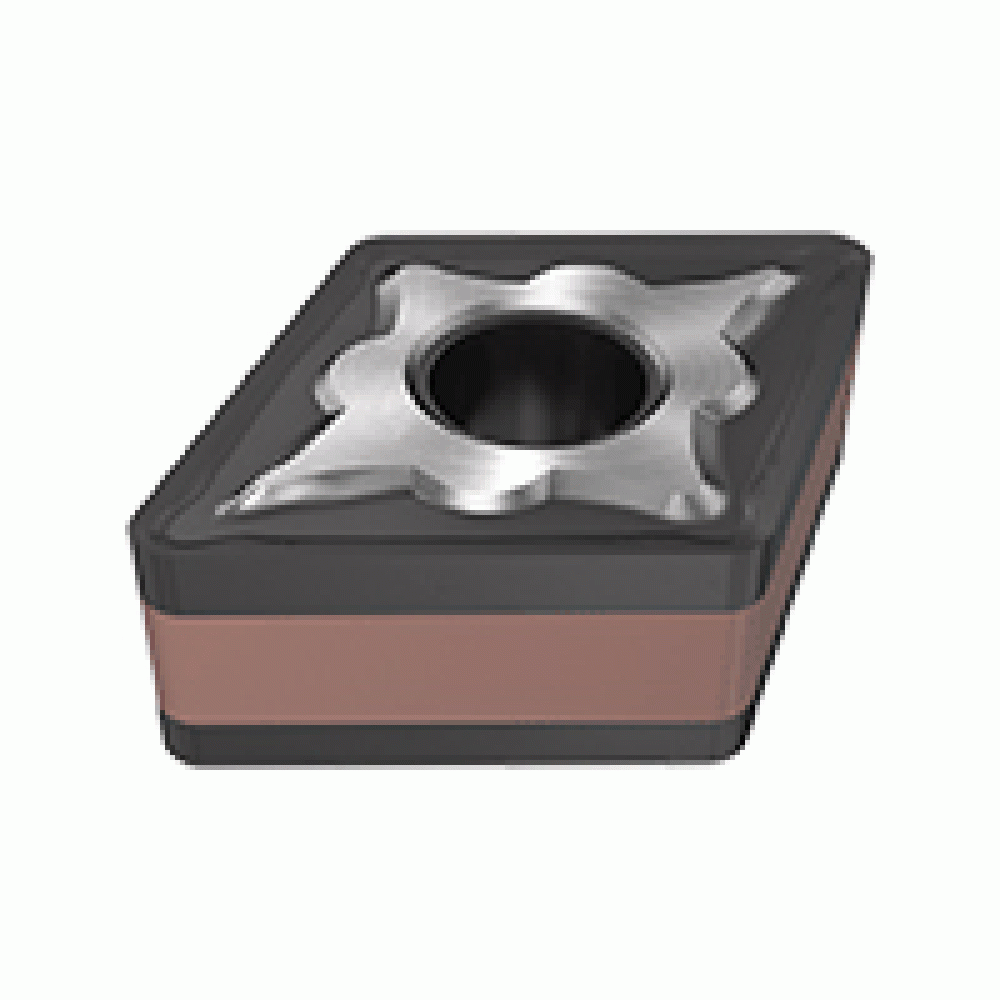

XNMG 332-M3M IC6025
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Included Angle | 70 degrees |
| Style | XNMG |
| Long Description | Double-Sided 70° Rhombic Inserts for Machining Stainless and Low Carbon Steel |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Double-Sided 70° Rhombic Inserts for Machining Stainless and Low Carbon Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.24 OZ |
| Width | 1.57 Inch |
| APP1Name | Ext. 70° Diamond 93° Approach |
| FamilyName | XNMG-M3M |
| Weight (OZ) | 0.24339 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
