Iscar
3398079

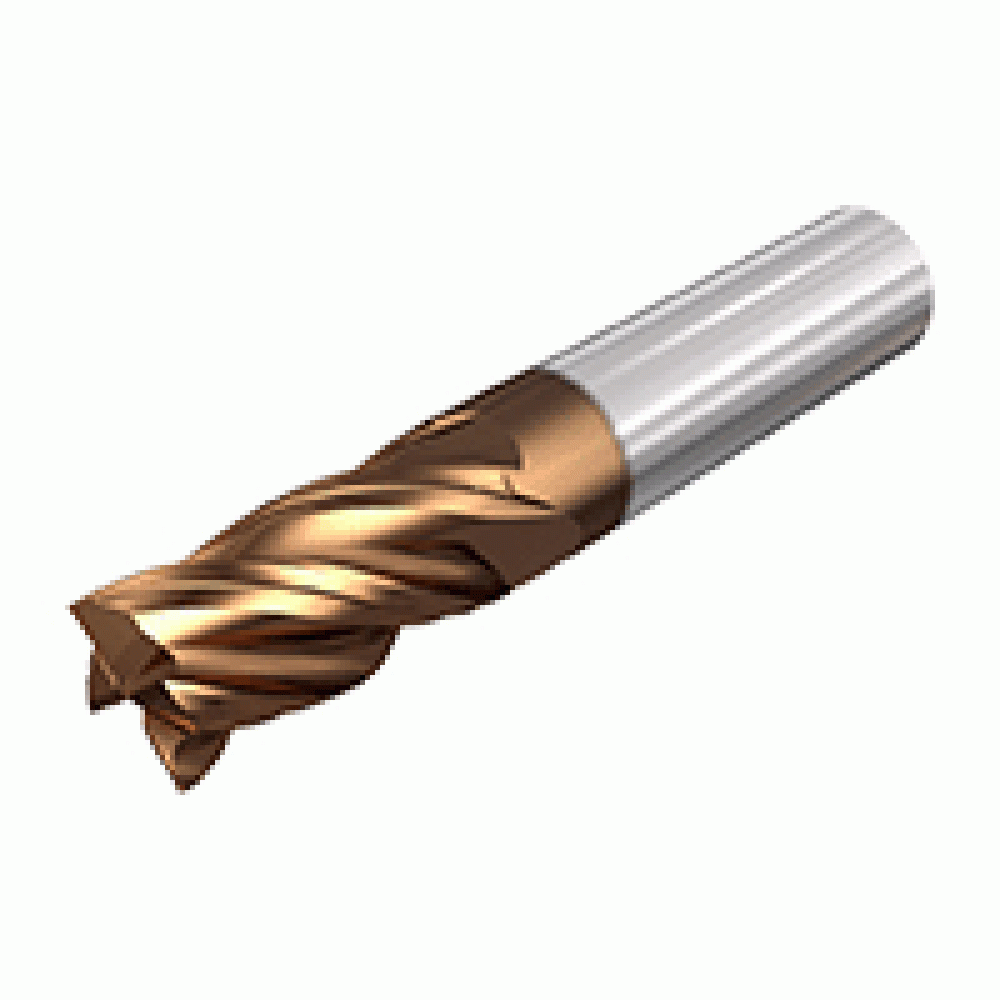

ECI-4 375-1.0C03VF3 IC608
Specifications
| Material | Carbide |
|---|---|
| Short Description | ISC 3/8x1x3 R.030 4F TiAlCN CARB VP FLASH MILL CYL |
| Shank Diameter | 375.0000" (375 ) |
| Overall Length | 3.0000" (76.200 mm) (3) |
| Long Description | 4 flute endmill with and without relieved necks, assorted radii and variable pitch for chatter dampening |
| Diameter | 0.3750" (3/8 ) |
| Flute Length | 1.0000" (25.400 mm) (1) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-4-VF |
| COO | USA |
| Weight (OZ) | 3.45753 |
| Width (Inch) | 0.63 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
