Iscar
3398373

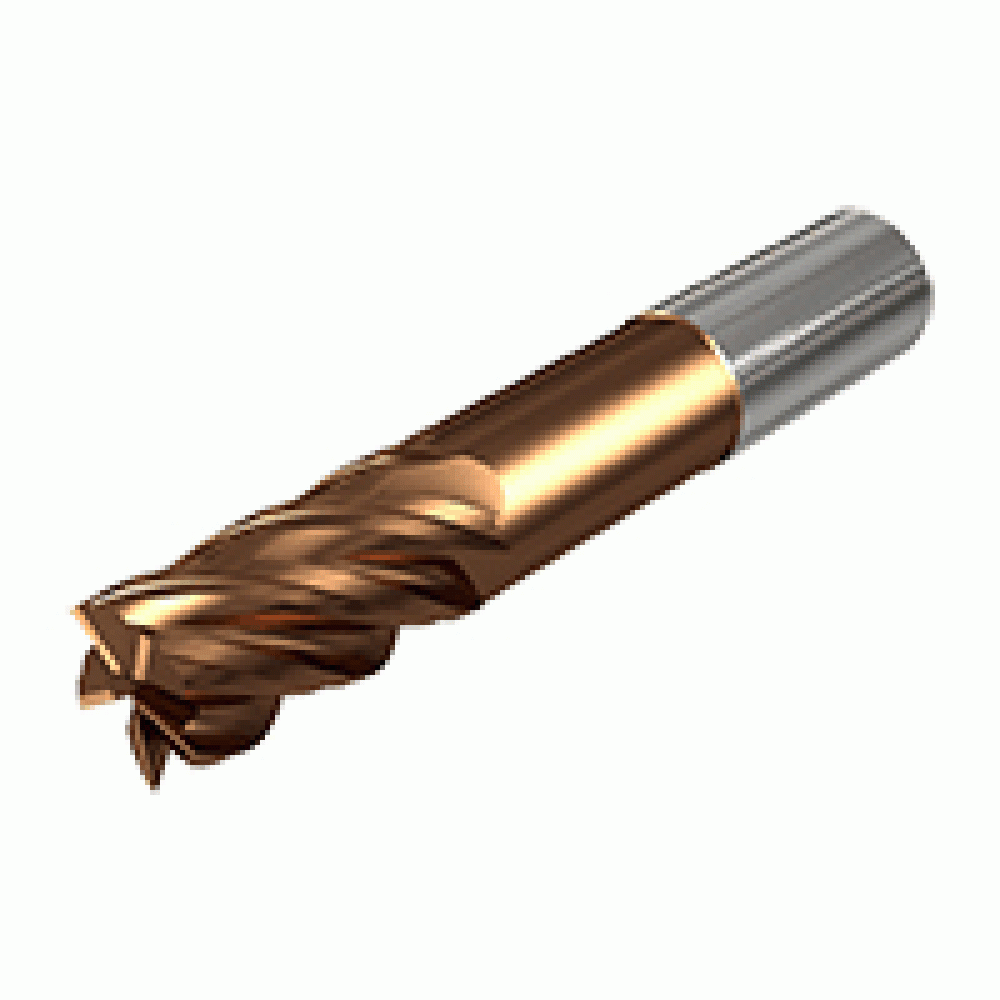

ECI-5 .375-.5C.015VF2 IC608
Specifications
| Material | Carbide |
|---|---|
| Short Description | ISC 3/8x1/2x2 R.015 5F TiAlCN CARB VP FLASH MILL CYL |
| Shank Diameter | 375.0000" (375 ) |
| Overall Length | 2.0000" (50.800 mm) (2) |
| Long Description | 5 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening |
| Diameter | 0.3750" (3/8 ) |
| Flute Length | 0.5000" (12.700 mm) (1/2 ) |
| Coating | AlTiCrSiN |
| APP1Name | Helical Interpolation |
| FamilyName | ECI-5-VF |
| COO | USA |
| Weight (OZ) | 2.30395 |
| Width (Inch) | 0.63 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
