Iscar
3398975
ECAI-B3 .5-1.5CR0-4EC IC1508
Specifications

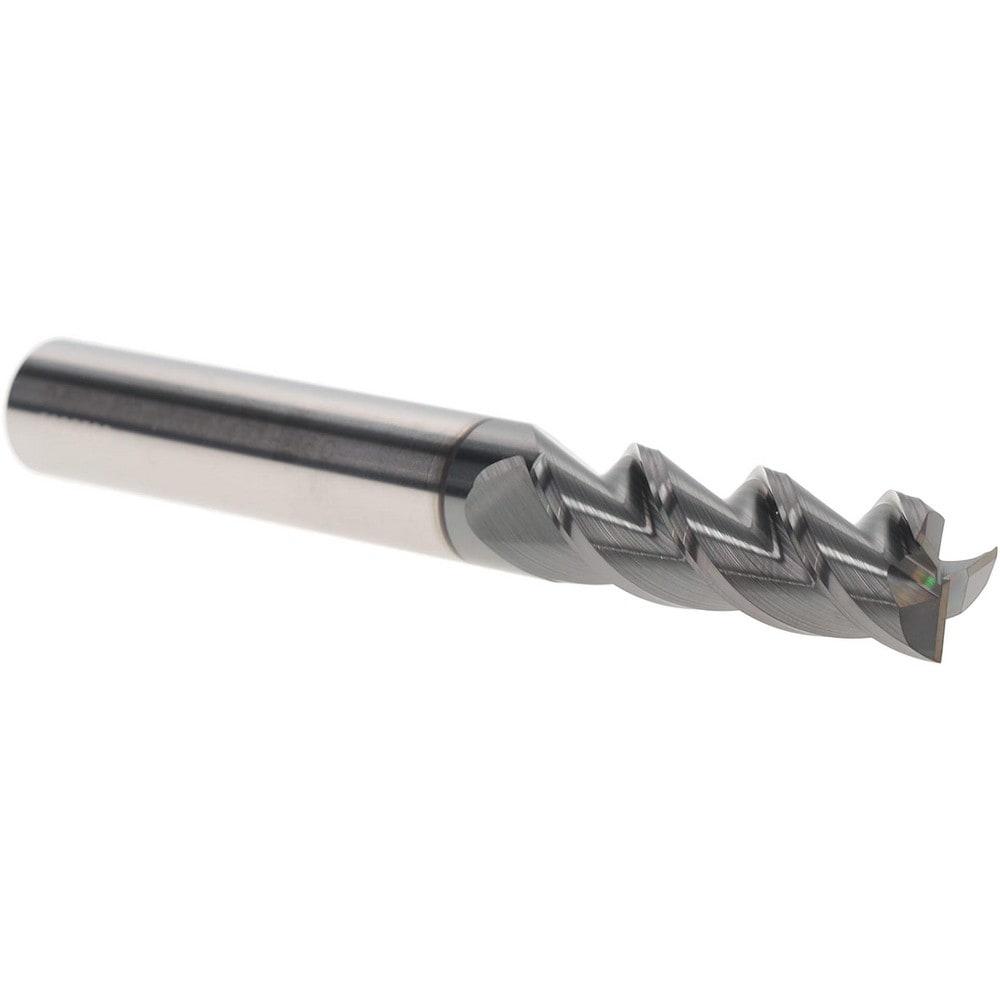

| Short Description | ISCAR 1/2x1.1/2x4 3F CARBIDE END-MILL DLC COAT IC1508 |
|---|---|
| Shank Diameter | 0.5000" (12.700 mm) (1/2 ) |
| Overall Length | 4.0000" (101.600 mm) (4) |
| Long Description | DLC coated 3 flute endmills for machining Aluminum and other non-ferrous materials. |
| Diameter | 0.5000" (12.700 mm) (1/2 ) |
| Flute Length | 1.5000" (38.100 mm) (1 1/2) |
| Coating | DLC |
| APP1Name | Counter Boring |
| FamilyName | ECAI-B3-EC |
| COO | USA |
| End/Corner Shape | Square End |
| Weight (OZ) | 0 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
